Battery charging cabinet

98.460.522

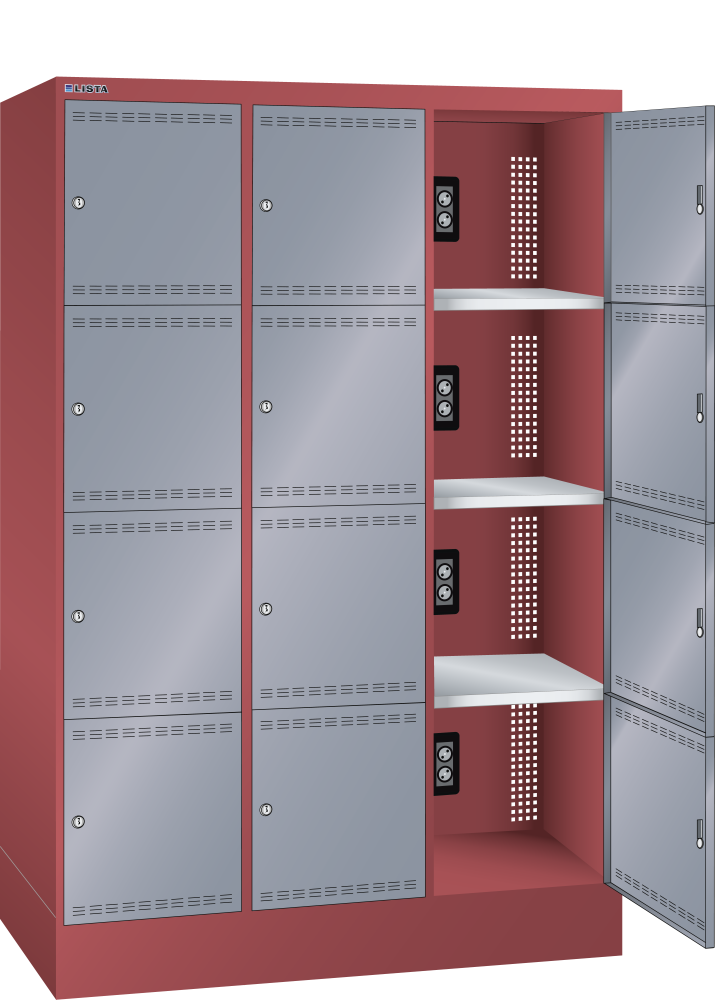

Battery charging cabinet with compartments (WxDxH) 1205x585x1795mm 3x4 compartments type GB 1x230V, 1xRJ45 KEY Lock Ruby red RAL 3003 / Grey metallic NCS S 6502-B

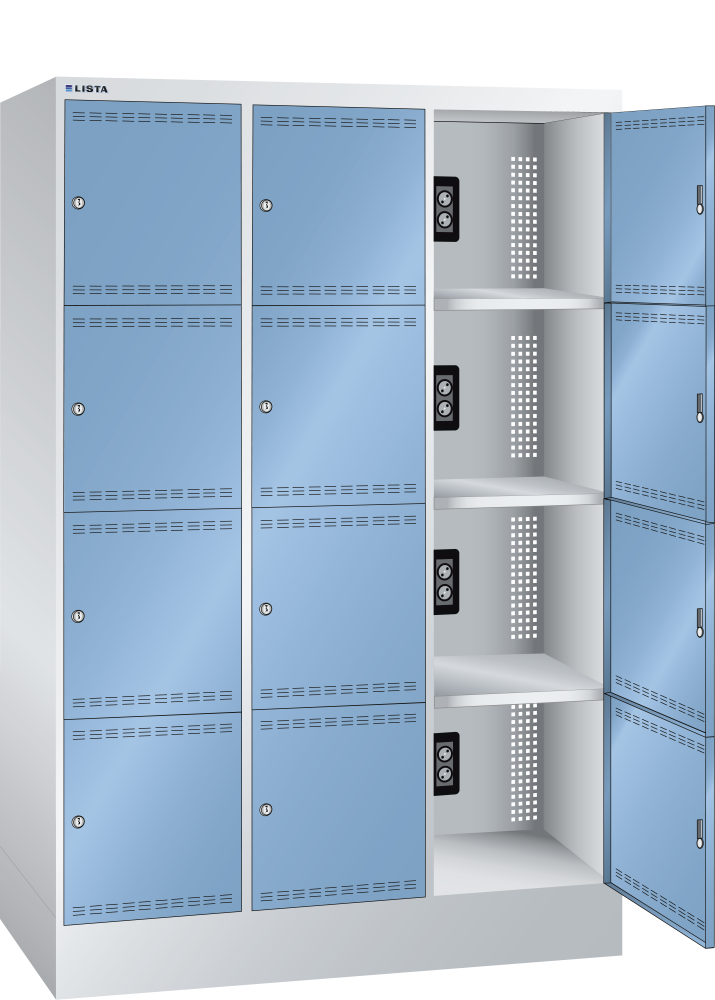

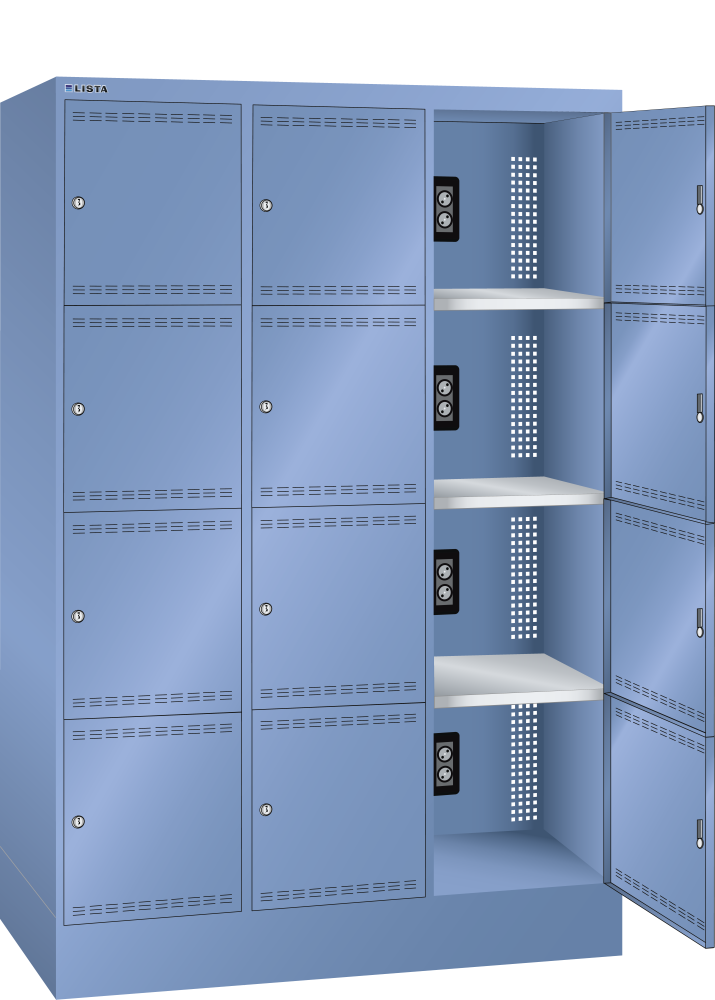

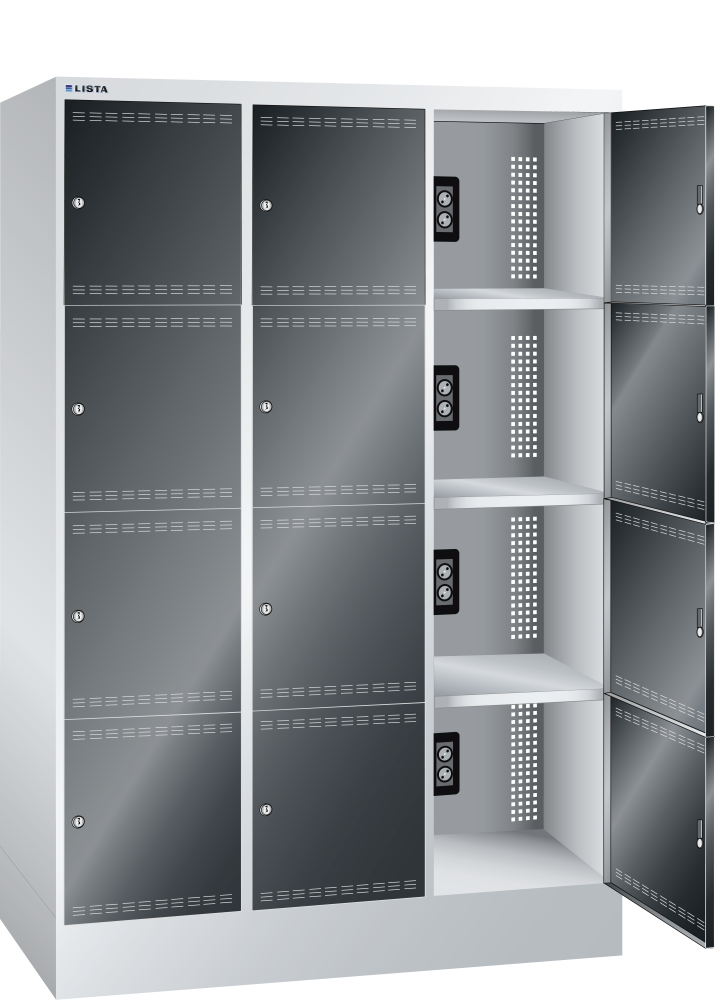

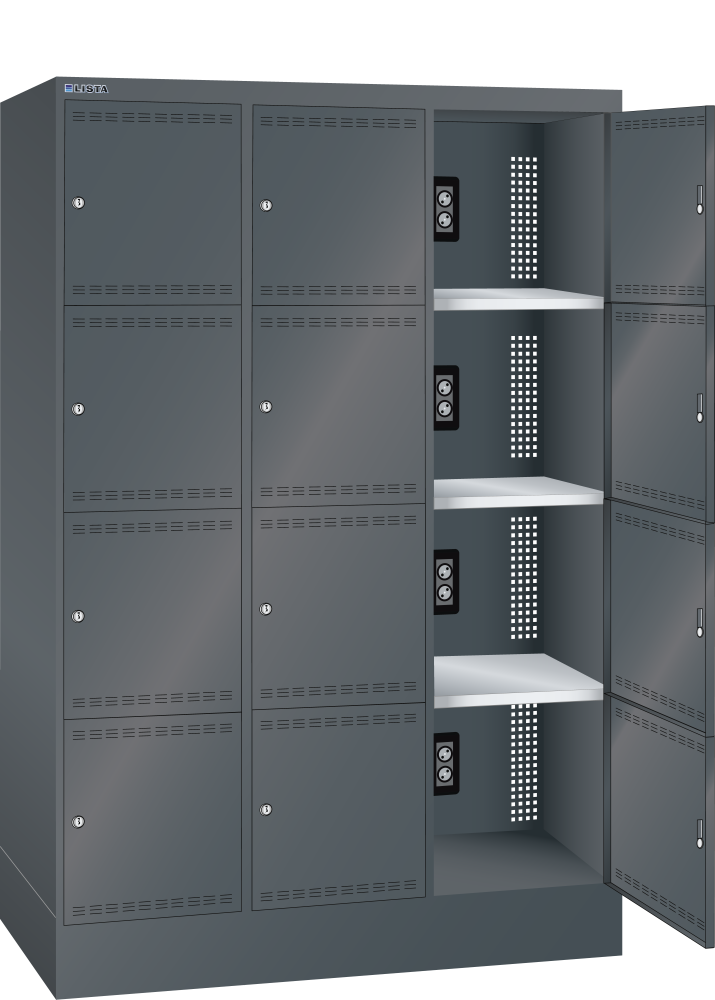

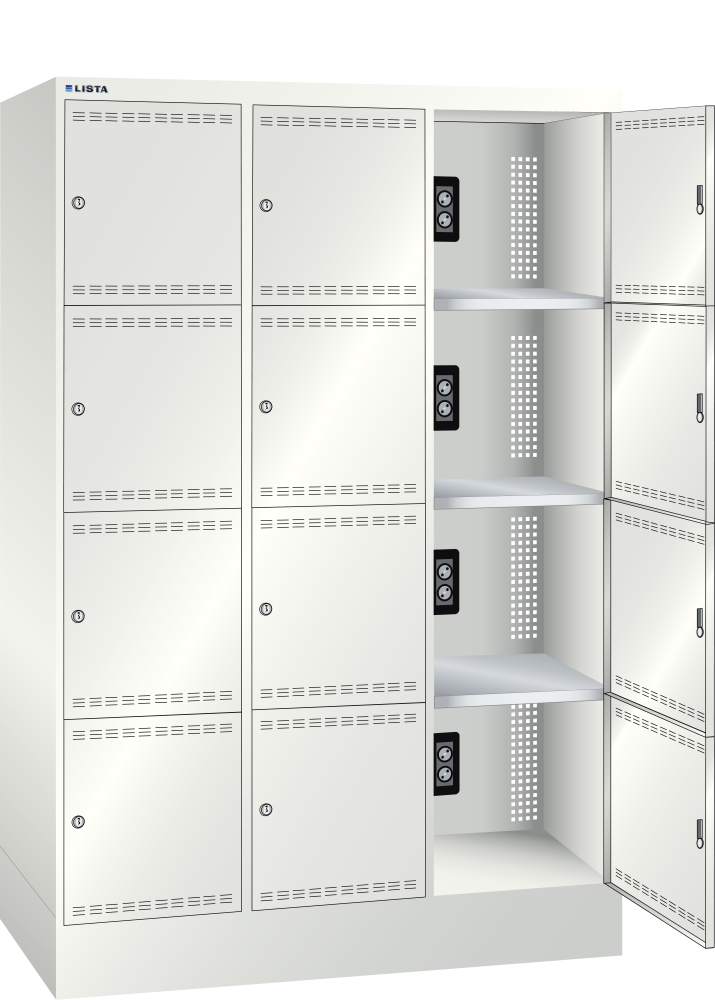

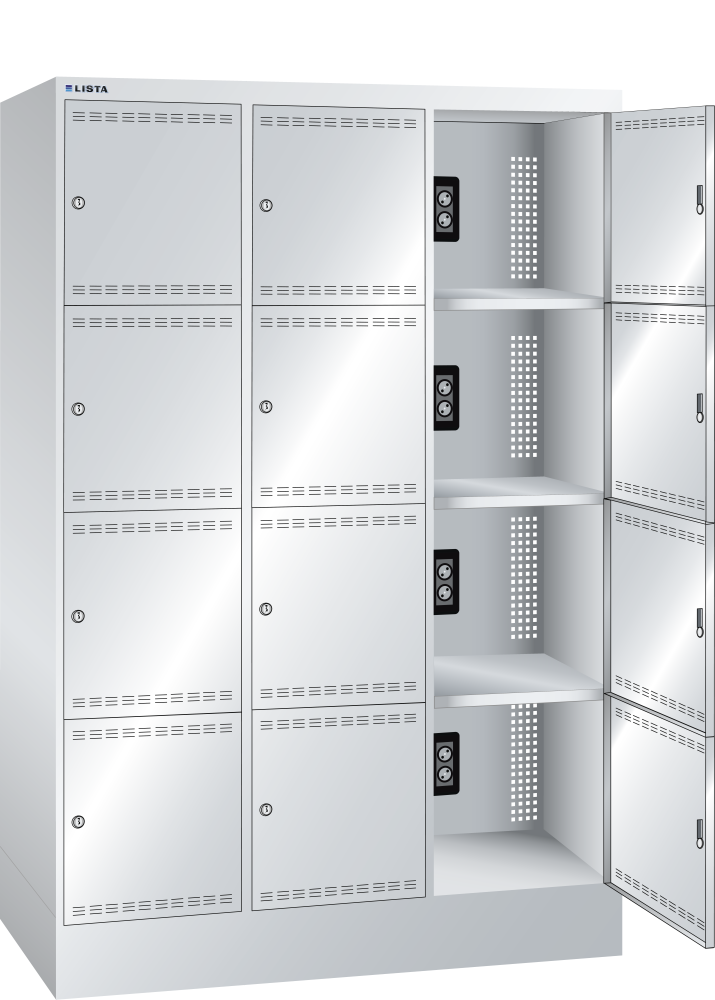

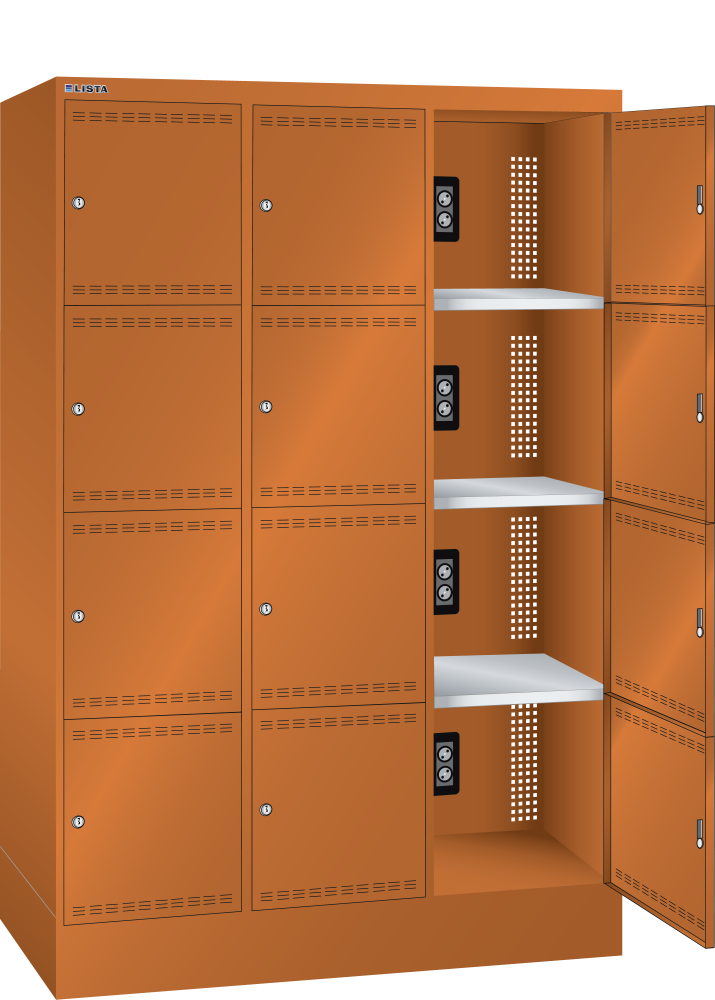

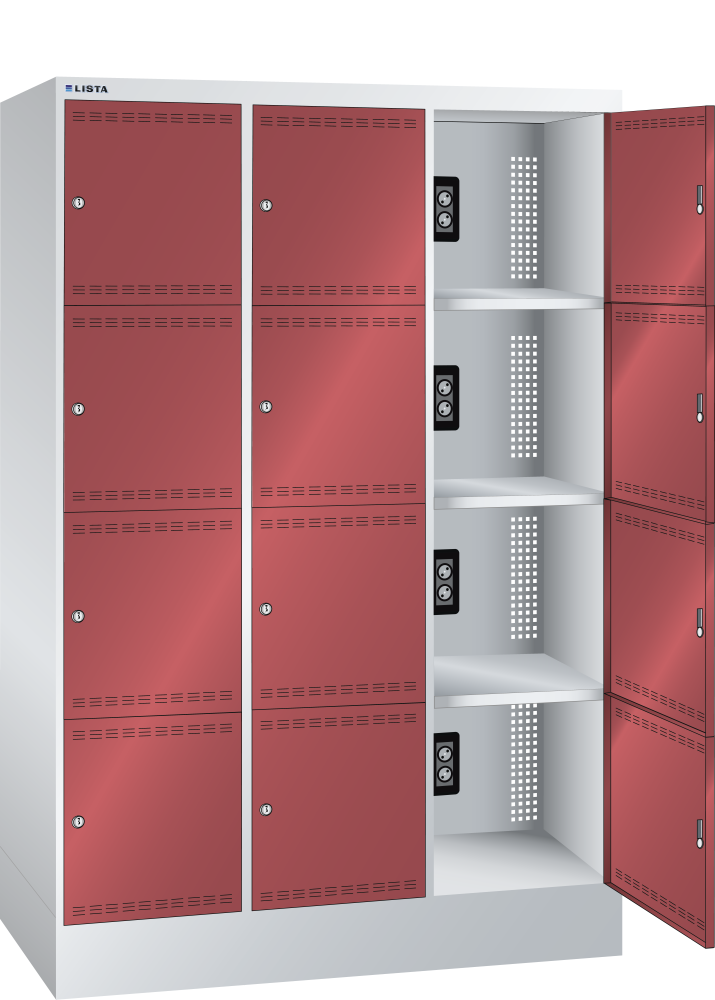

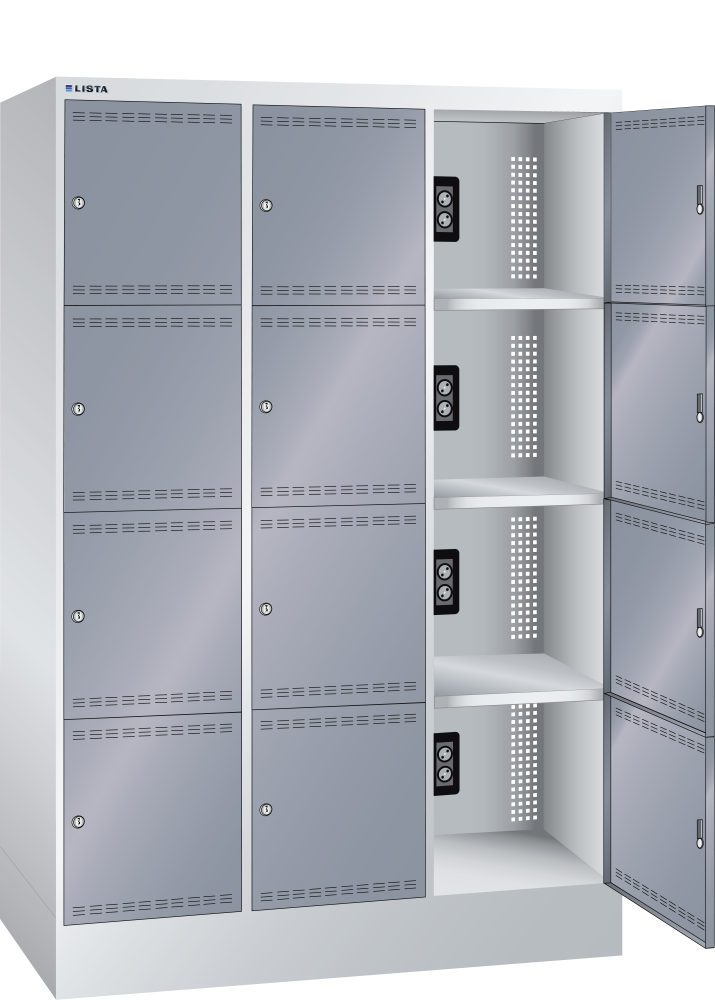

Other color variants

Description

KEY Lock: KEY Lock, our standard locking system with replaceable cylinders. Manual opening/locking with key.

Notes

report

Ensure that each connection point to the on-site grid is equipped with an RCD (rated differential current of 30 mA) and protected with a 16 A (CH = 10 A) fuse.

Incl. 2 x supply cable

Technical Data

Description
Battery charging cabinet
Net weight kg
123
Width mm
1205
Depth mm
585
Height mm
1795
Locking system
KEY Lock (Cylinder lock)
Number of compartments
3 x 4
Number of compartments side by side
3
Number of compartments stacked
4
Compartment width mm
400
Compartment height mm
400
Clear compartment width mm
340
Clear compartment depth mm
470
Clear compartment height mm
380
Type
GB (Type BS 1363)
Module per compartment
1 x 230 V, 1 x RJ45
Specifications
incl. 2 connecting cable
Specification
with base, 150 mm
Door type
Compartment doors
Door material
Solid sheet
Hinge pins mounted
mounted on the right
Door specification
Air vents at the top and bottom, with label frame and cambered
Colour
Ruby red RAL 3003 / Grey metallic NCS S 6502-B
