Drawer cabinet
14.367.120

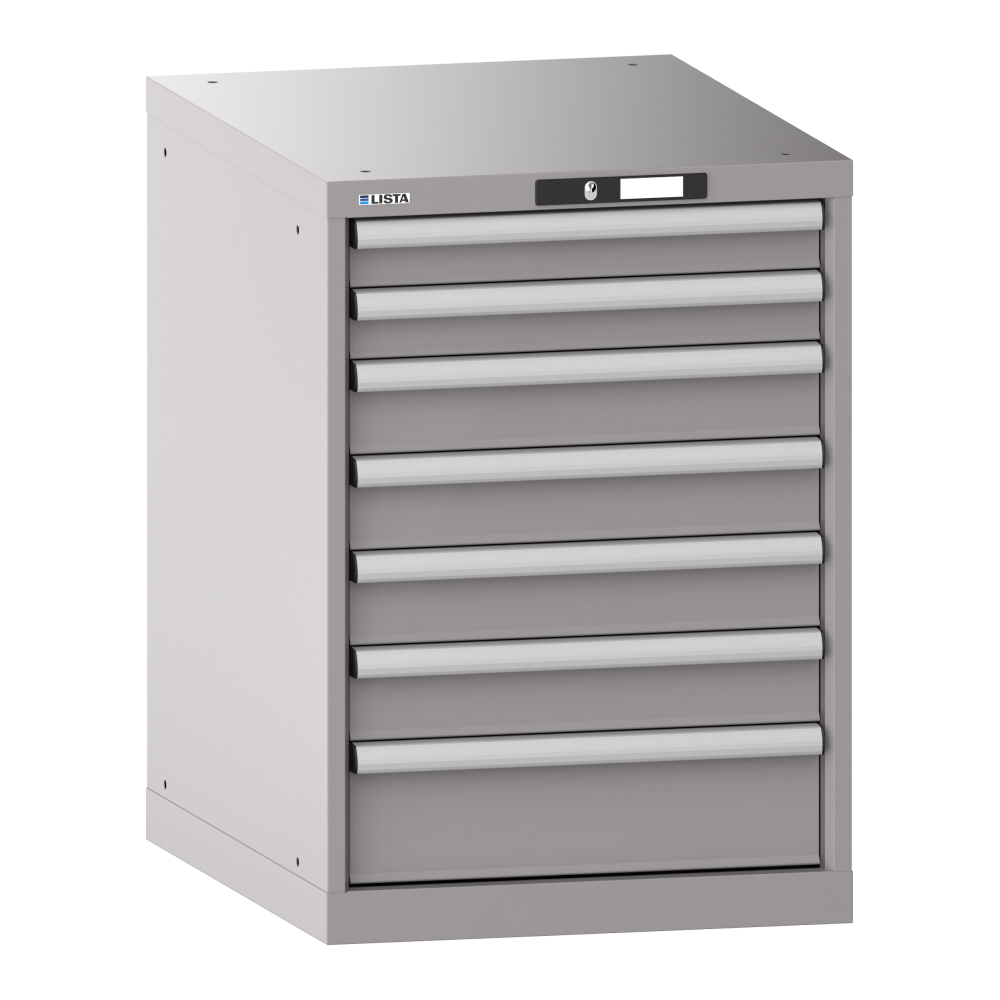

Drawer cabinet 27x36E (WxDxH) 564x725x800mm 7 drawers (2x75/4x100/1x150) 75kg KEY Lock Grey aluminium RAL 9007
Other color variants
-

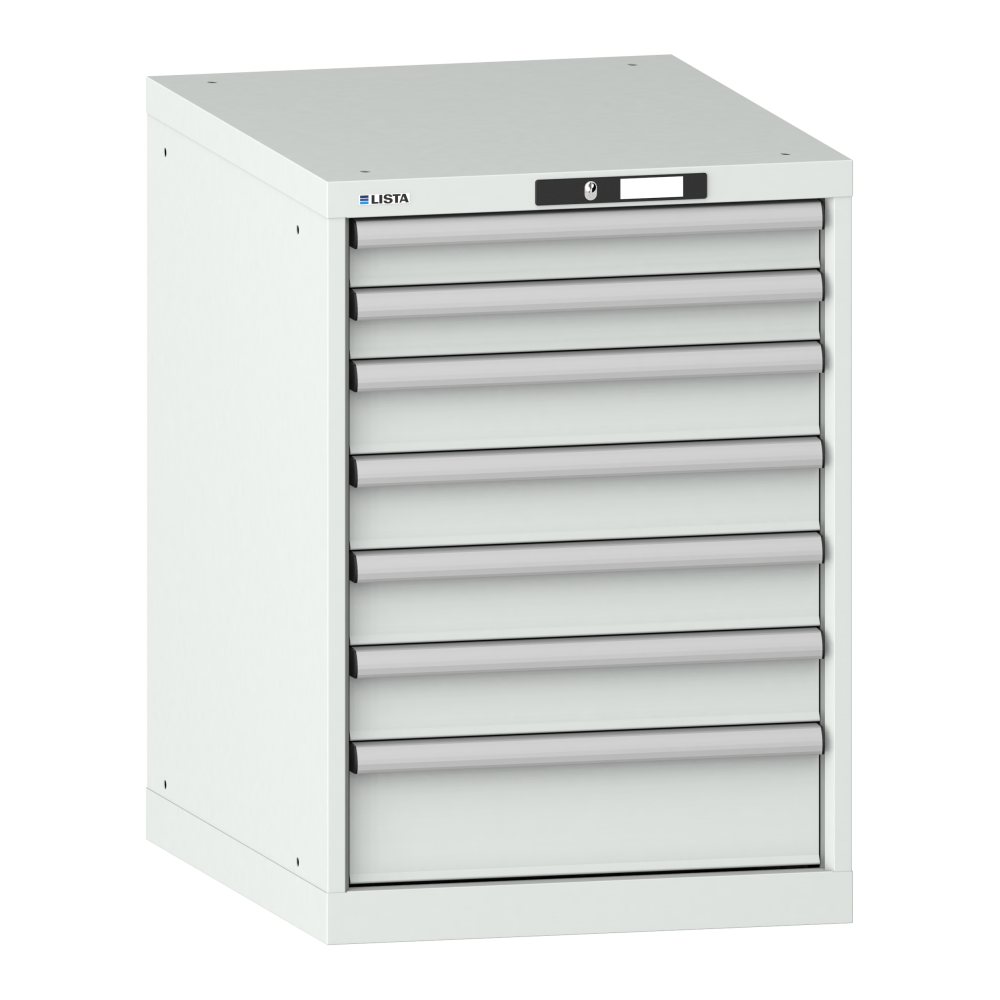

colour as described (individual colour request)
001 -

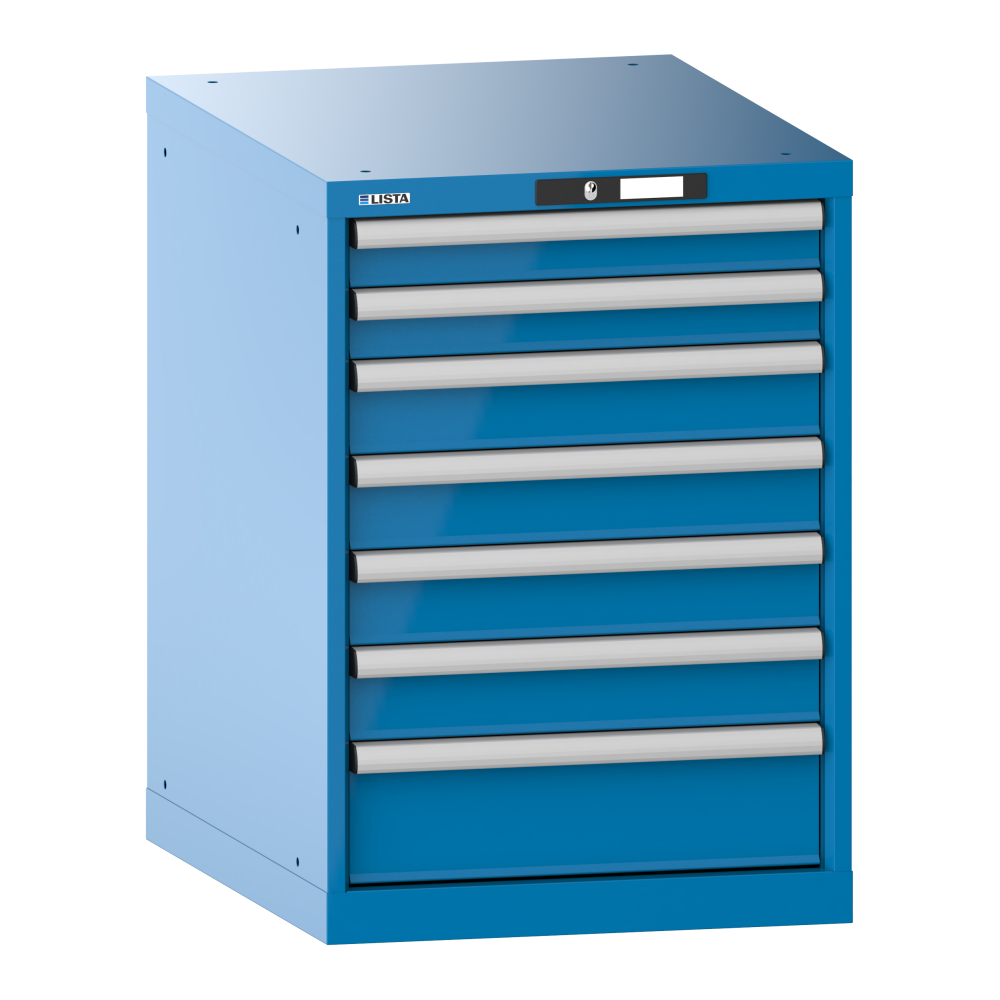

Light blue RAL 5012
010 -
Light grey RAL 7035
020 -

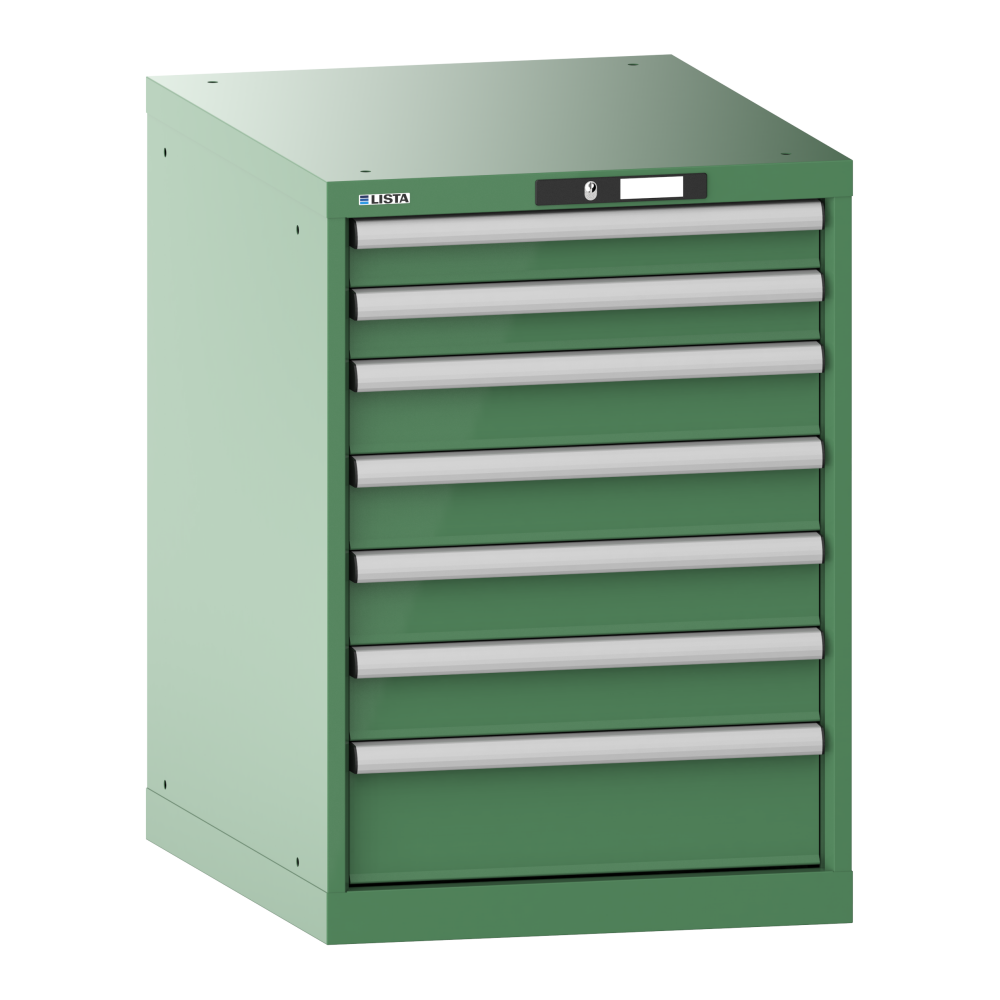

Reseda green RAL 6011
030 -
Capri blue RAL 5019
040 -
Grey metallic NCS S 6502-B
050 -
Black NCS S 9000-N
060 -
Ruby red RAL 3003
070 -
Pigeon grey NCS S 4502-B
080 -
Gentian blue RAL 5010
090 -
Signal blue RAL 5005
100 -

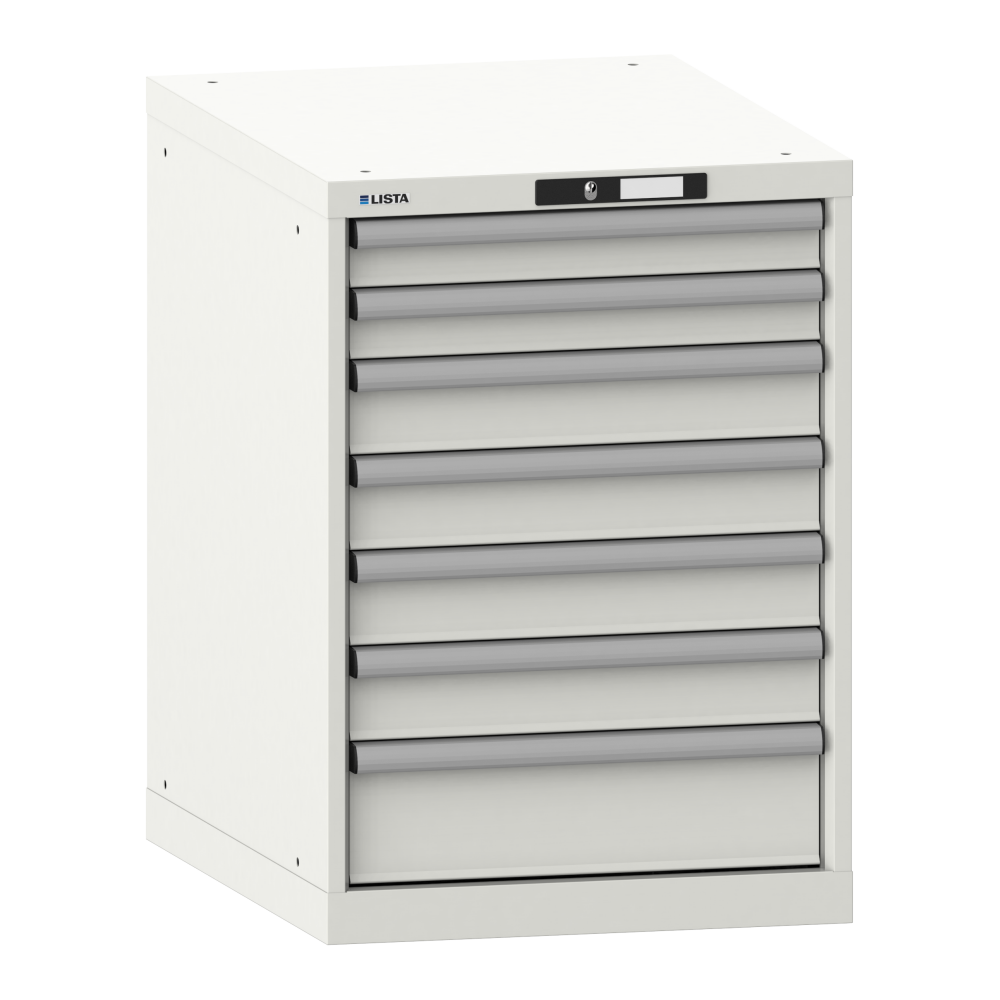

Pure white RAL 9010
110 -
White aluminium RAL 9006
130 -

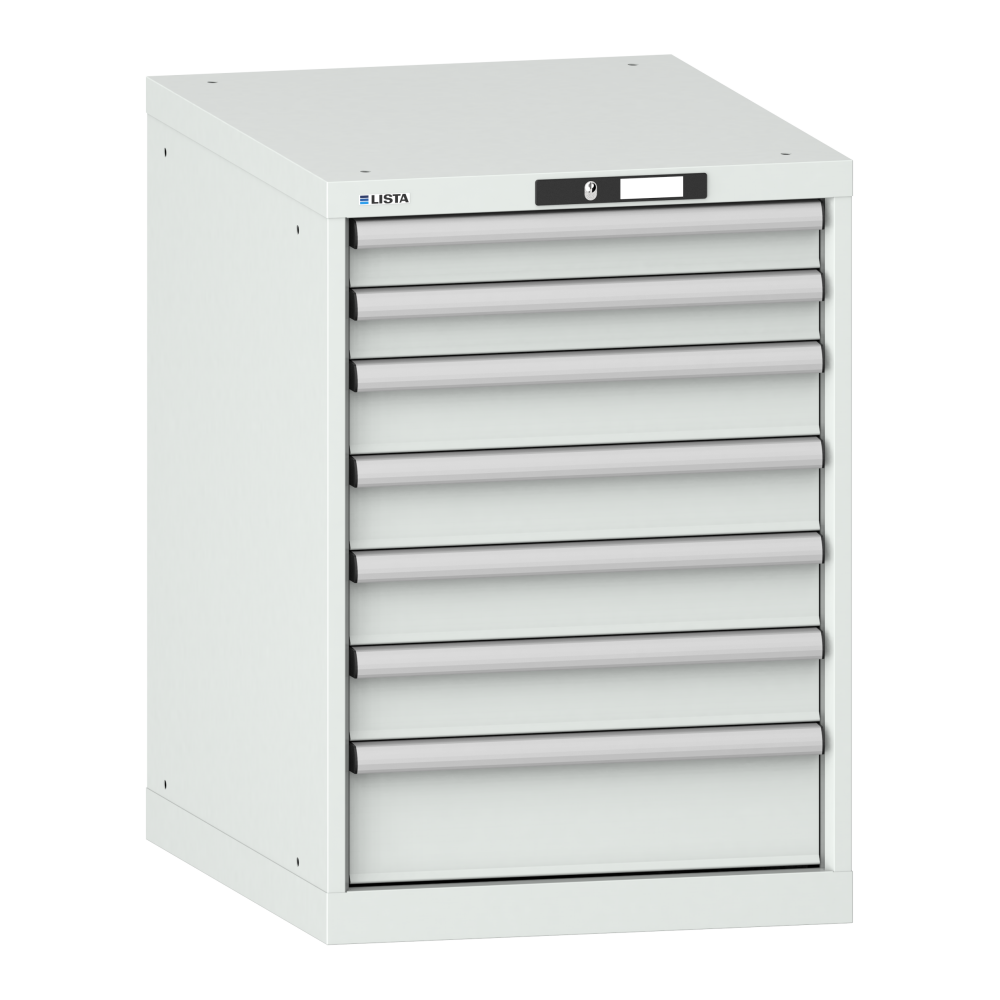

Pale grey NCS S 2000-N
140 -
Ultramarine blue RAL 5002
170 -

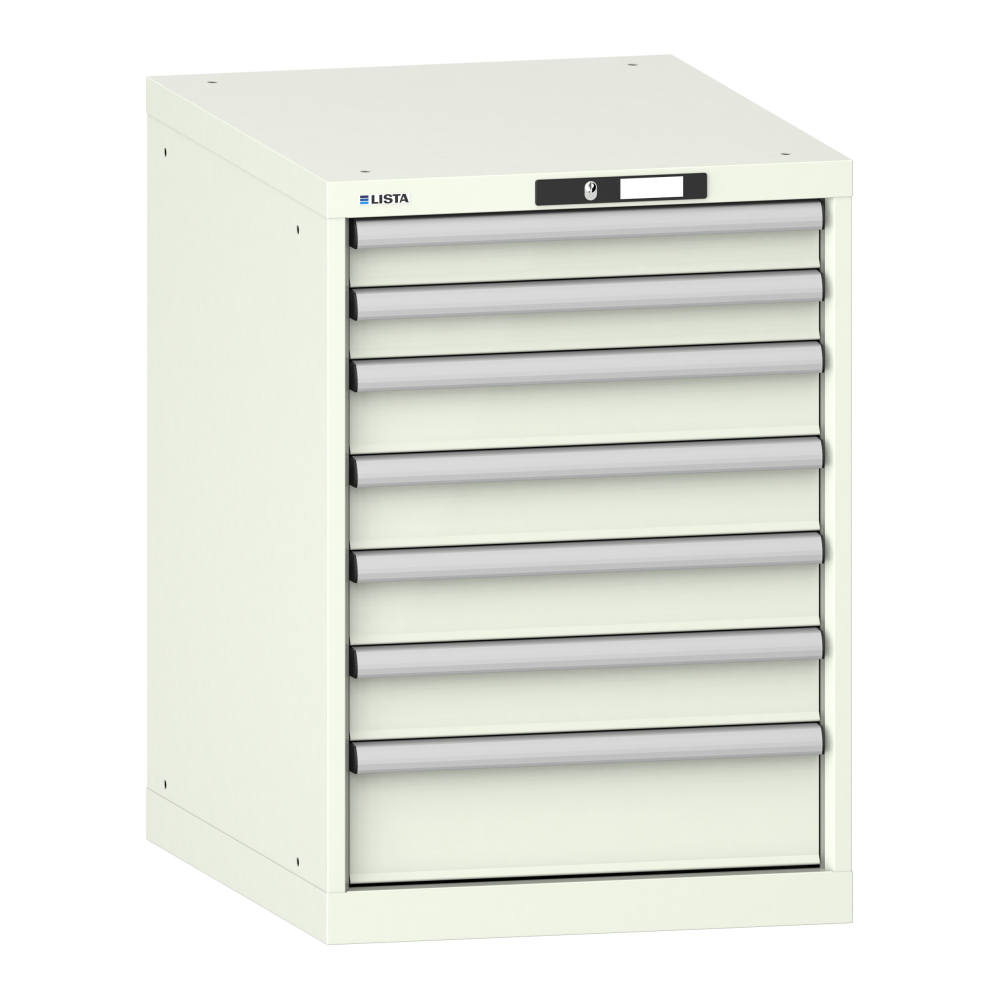

Grey-white RAL 9002
180 -
Sky blue RAL 5015
190 -
Anthracite grey RAL 7016
200 -
Brilliant blue RAL 5007
210 -
Turquoise blue RAL 5018
220 -

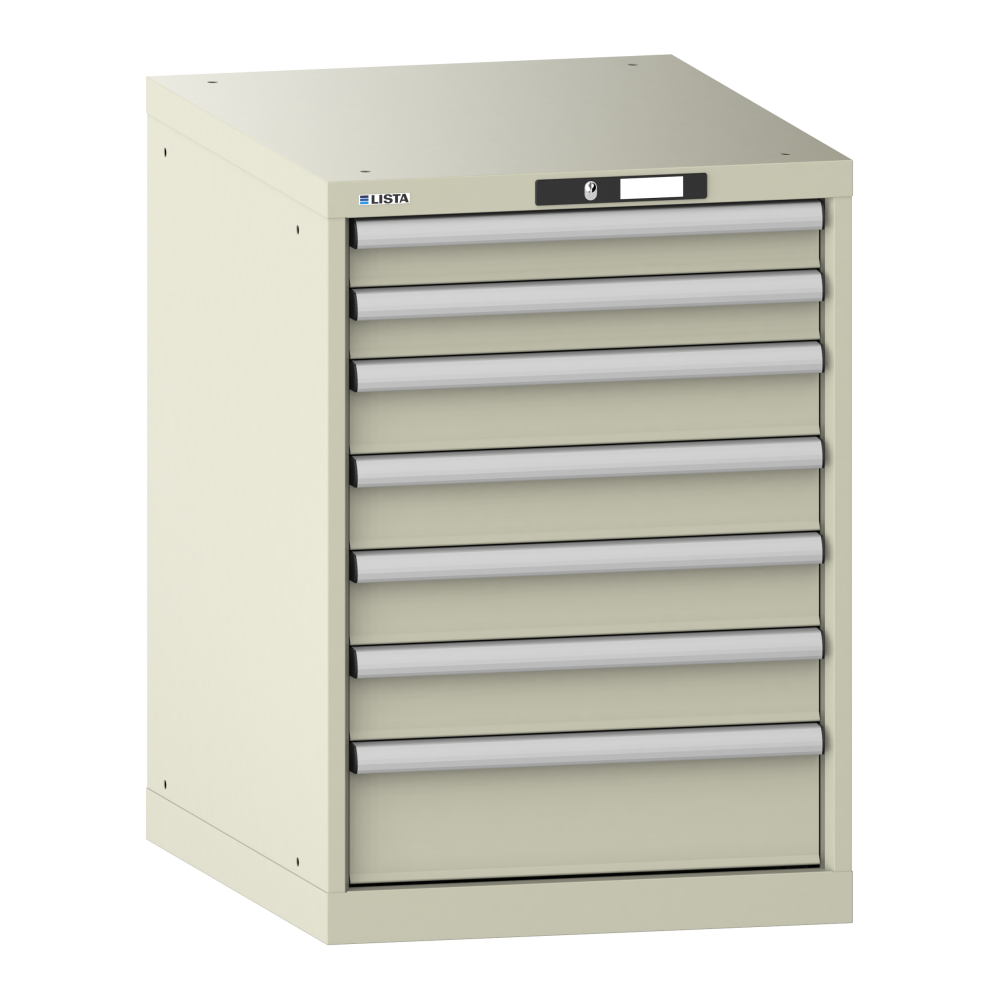

Pebble grey RAL 7032
230 -

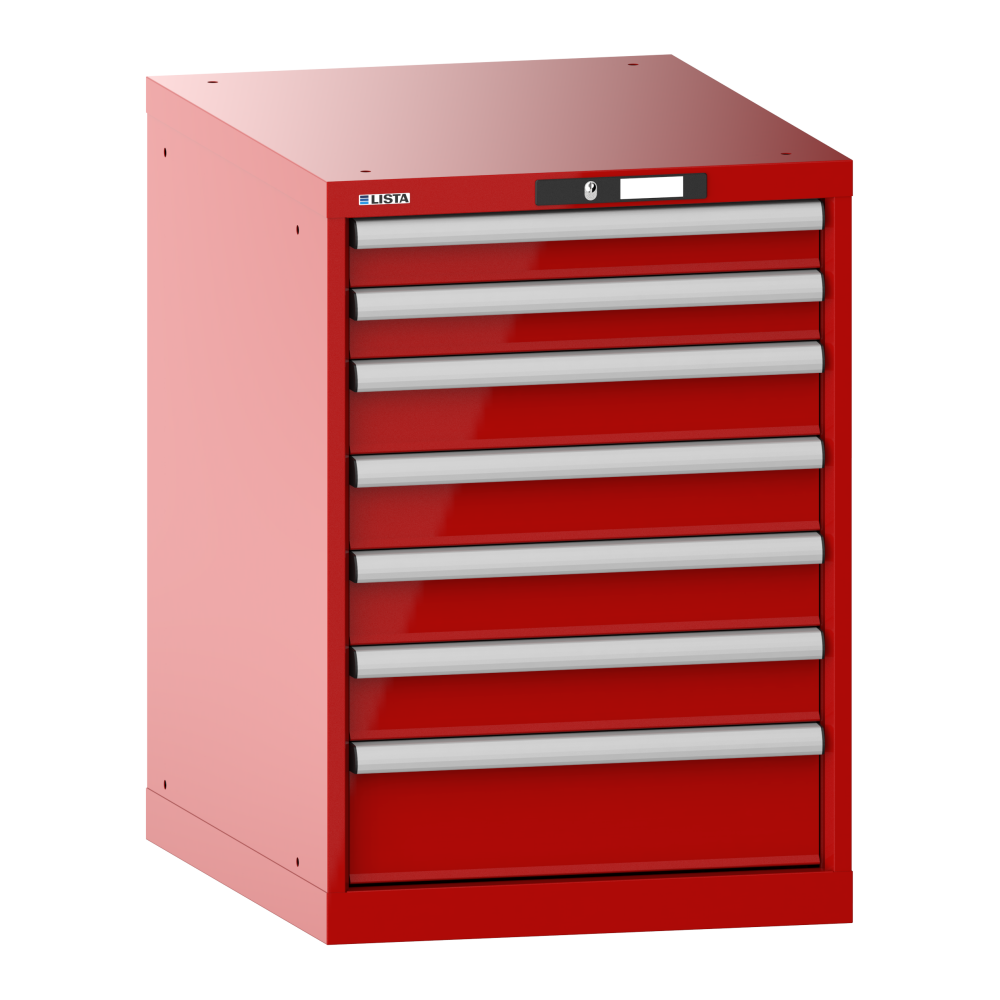

Flame red RAL 3000
240 -

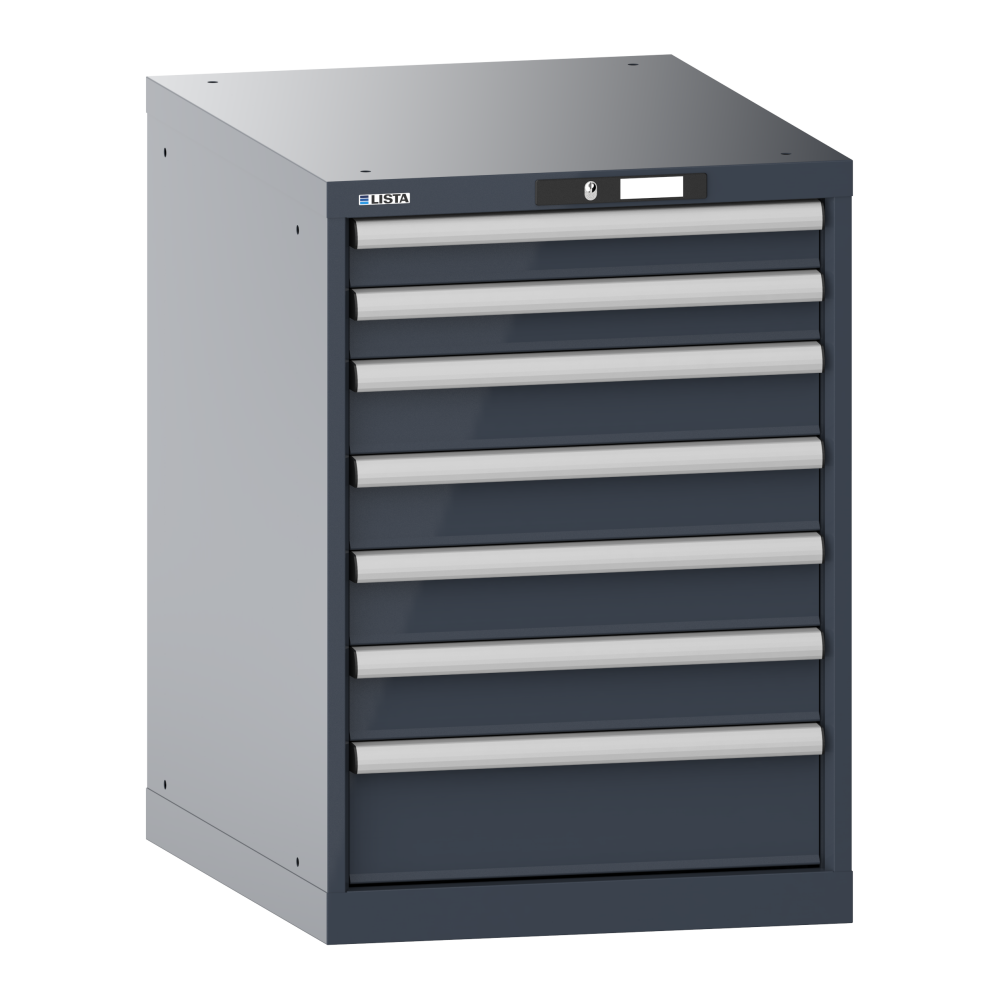

Slate grey RAL 7015
260 -

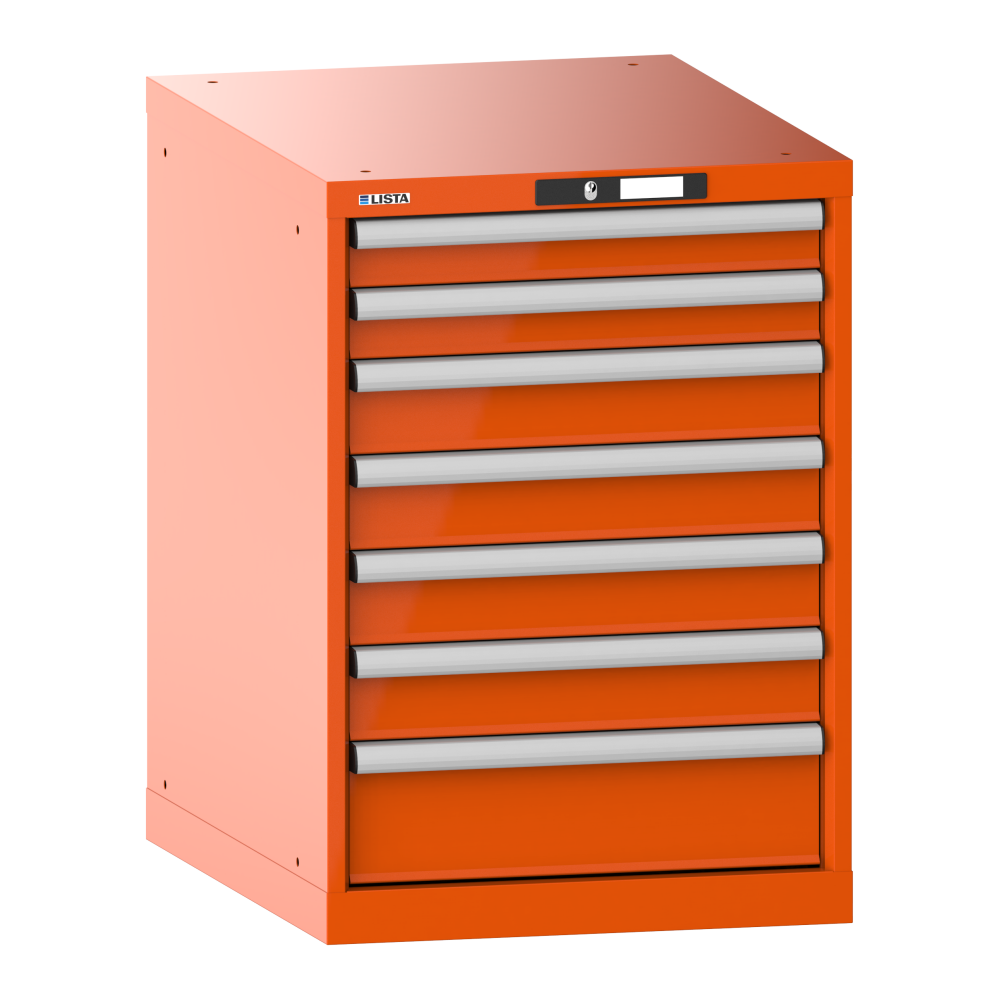

Orange RAL 2004
280 -

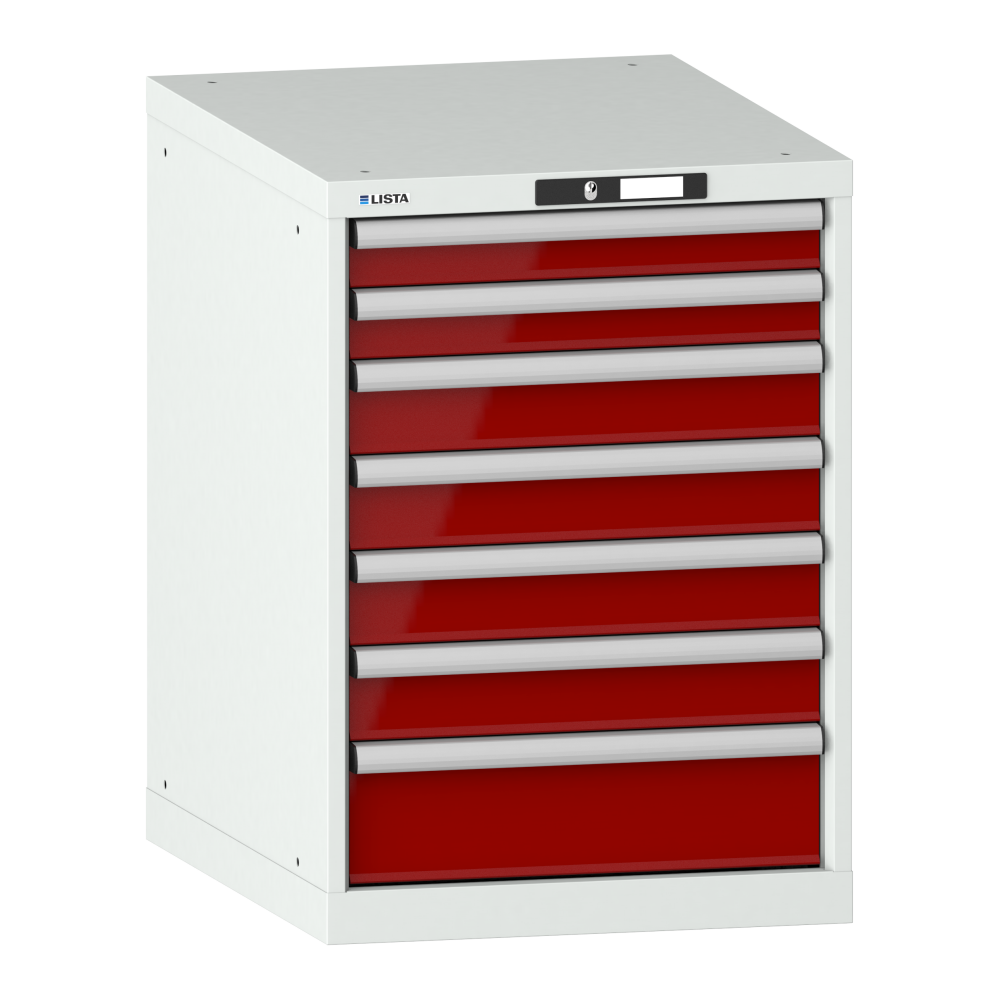

Light grey RAL 7035 / Ruby red RAL 3003
512 -
Light grey RAL 7035 / Light blue RAL 5012
514 -
Light grey RAL 7035 / Signal blue RAL 5005
518 -

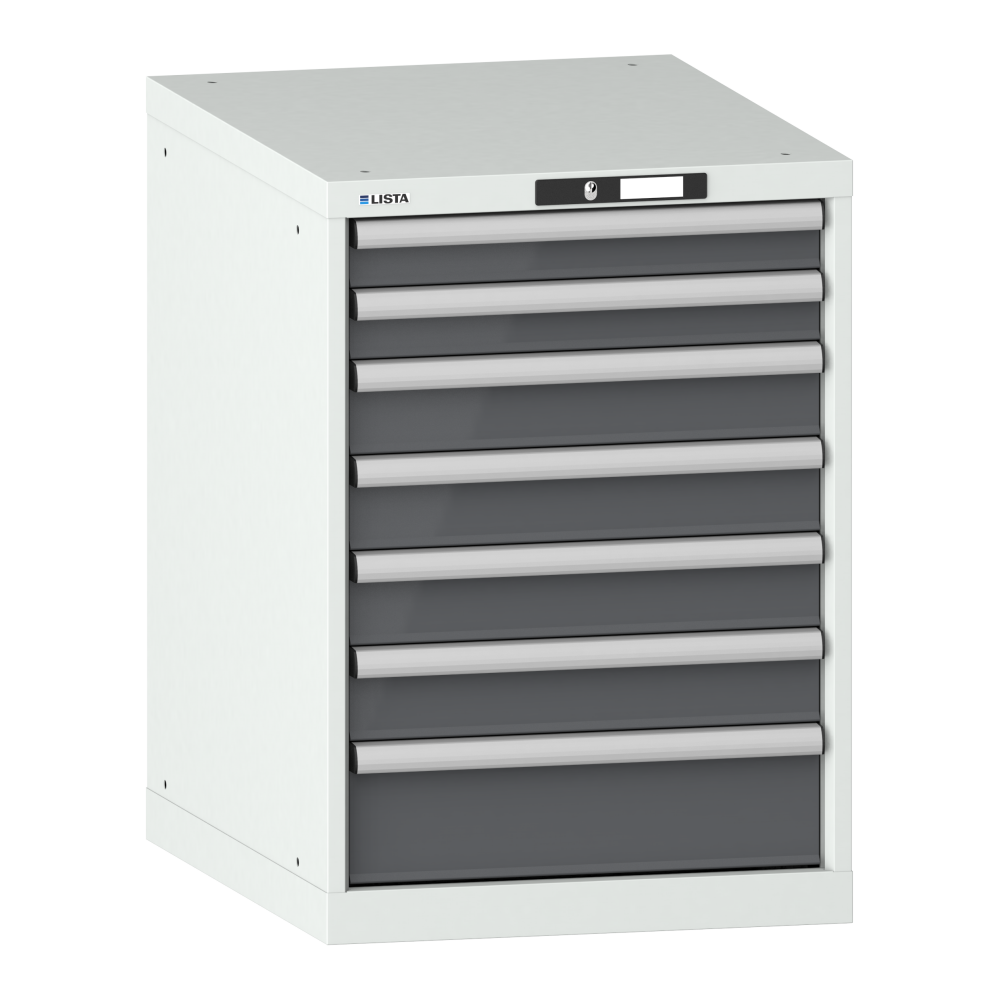

Light grey RAL 7035 / Grey metallic NCS S 6502-B
519 -

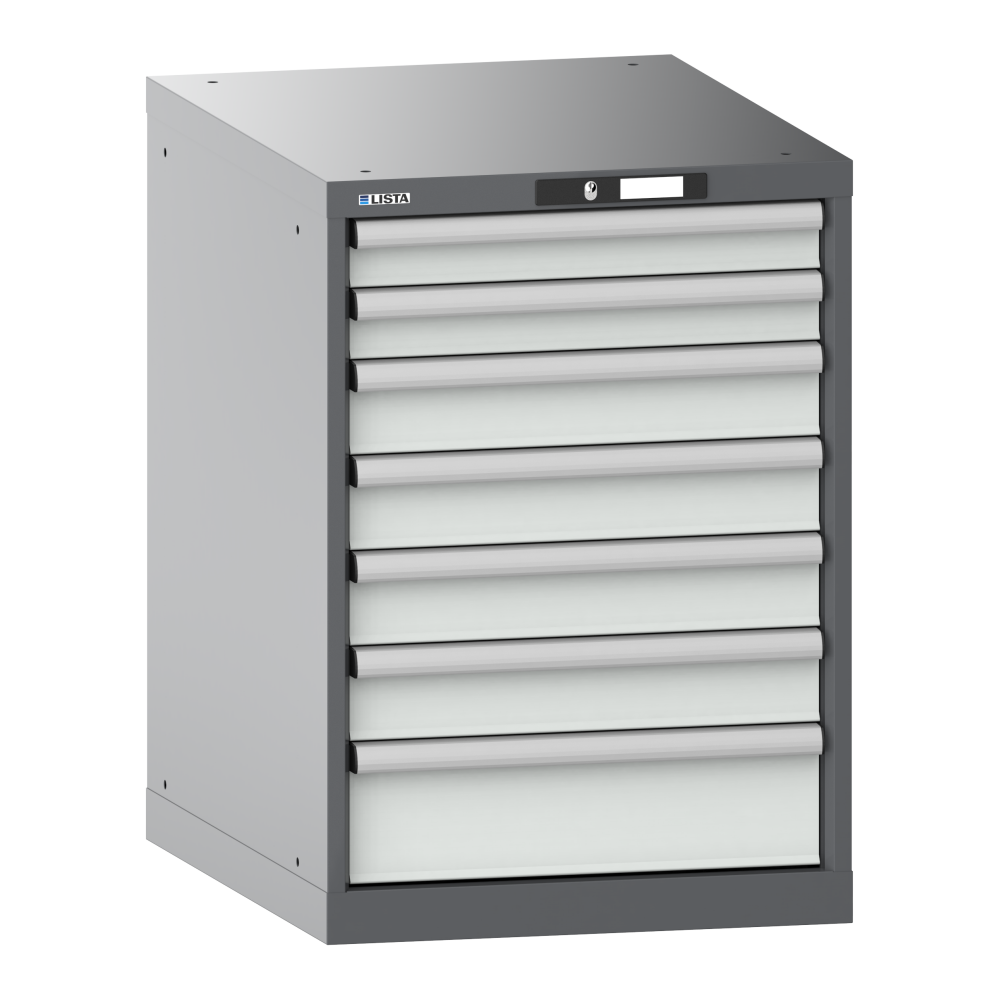

Grey metallic NCS S 6502-B / Light grey RAL 7035
521 -

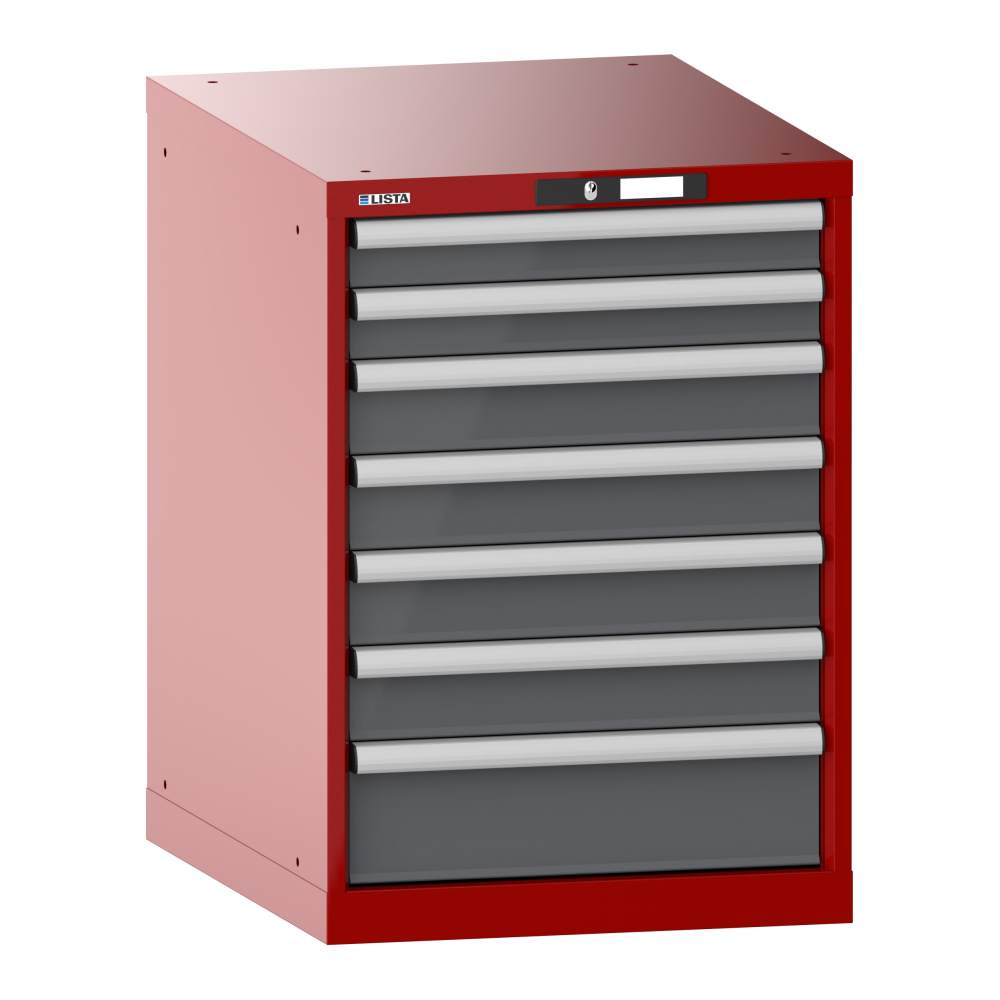

Ruby red RAL 3003 / Grey metallic NCS S 6502-B
522
Accessories
Description
KEY Lock: KEY Lock, our standard locking system with replaceable cylinders. Manual opening/locking with key.
Drawer safety device standard: Standard configuration including single-drawer blocking system
Notes
For filling and loading up the drawers and drawer cabinets, please follow the assembly instructions and the loading rules. Capacity applies with evenly distributed load.
Technical Data
Description
Drawer cabinet
Net weight kg
103
LISTA units
27 x 36 E
Width mm
564
Depth mm
725
Height mm
800
Clear height mm
700
Number of front heights mm
2 x 75 / 4 x 100 / 1 x 150
Drawer safety catch
Standard
Drawer clear dimensions (W x D) mm
450 x 600
Drawers useful width mm
459
Drawers useful depth mm
612
Number of drawers
7
Drawer load capacity kg
75
Locking system
KEY Lock
Colour
Grey aluminium RAL 9007
Matching accessories for Drawer cabinet
Raised edges on 3 sides
74.026.000
Raised edge 3 sides 27x36E (WxDxH) 564x725x20mm black NCS S 9000-N, including ribbed mat black
2-way pallet/forklift truck base
report
74.410.000
2-way pallet/forklift truck base 27x36E (WxDxH) 564x659x100mm without base cover Black NCS S 9000-N
Plastic boxes
100.291.000
Partition material Set plastic boxes 27x36E/36x27E (WxD) 612x459mm FH 75mm 28 plastic boxes
Plastic boxes
100.293.000
Partition material Set plastic boxes 27x36E/36x27E (WxD) 612x459mm FH 75mm 18 plastic boxes
Plastic boxes
100.294.000
Partition material Set plastic boxes 27x36E/36x27E (WxD) 612x459mm FH 100,125mm 18 plastic boxes
Slotted dividers and metal separators
100.245.000
Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 75mm 2 slotted dividers, 10 metal separators
Slotted dividers and metal separators
100.246.000
Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 100,125mm 2 slotted dividers, 10 metal separators
Slotted dividers and metal separators
100.247.000
Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 150mm 2 slotted dividers, 10 metal separators
Slotted dividers and metal separators
100.270.000
Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 75mm 1 slotted partition, 2 metal separators
Slotted dividers and metal separators
100.271.000
Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 100,125mm 1 slotted partition, 2 metal separators
Slotted dividers and metal separators
100.272.000
Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 150mm 1 slotted partition, 2 metal separators
Slotted dividers and metal separators
100.275.000
Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 75mm 2 slotted dividers, 3 metal separators
Slotted dividers and metal separators
100.276.000
Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 100,125mm 2 slotted dividers, 3 metal separators
Slotted dividers and metal separators
100.277.000
Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 150mm 2 slotted dividers, 3 metal separators
Slotted dividers and metal separators
100.235.000
Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 75mm 4 slotted dividers, 25 metal separators
Slotted dividers and metal separators
100.236.000
Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 100,125mm 4 slotted dividers, 25 metal separators
Slotted dividers and metal separators
100.250.000
Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 75mm 3 slotted dividers, 8 metal separators
Slotted dividers and metal separators
100.251.000
Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 100,125mm 3 slotted dividers, 8 metal separators
Slotted dividers and metal separators
100.252.000
Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 150mm 3 slotted dividers, 8 metal separators
