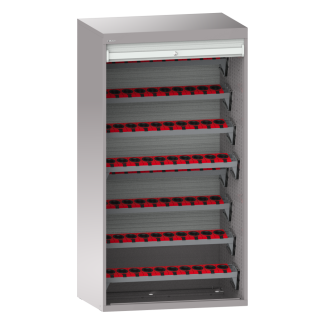

NC cabinet

18.395.120
NC cabinet with roller shutter 54x27E (WxDxH) 1038x691x1950mm 8 tool cradles, 80 holders HSK 63 A+C+E/80 B+D+F KEY Lock Grey aluminium RAL 9007
remove add add_shopping_cart
Other color variants
001
010
020
030
040
050
060
070
080
090
100
110
130
140
170
180
190
200
210
220
230
240
260
280

Description

Cabinet housing: The housings have double walls with side panels with internal slots to attach pull-out and adjustable shelves, drawers and tool cradles. The adjustment range is subdivided into a 25 mm grid. Specification: sheet steel.

Roller shutter: The integrated plastic roller shutter has a practical recessed grip with a modular V sleeve and 67 mm catch. Specification: roller shutter with plastic slats. Colour: pale grey, RAL 7035.

KEY Lock: KEY Lock, our standard locking system with replaceable cylinders. Manual opening/locking with key.

Technical Data

Description
NC cabinet
Net weight kg
150
LISTA units
54 x 27 E
Width mm
1038
Depth mm
691
Height mm
1950
Clear height mm
1730
Locking system
KEY Lock
Number of holders
80
Type
HSK 63 A+C+E / 80 B+D+F
Specifications
8 tool cradle, 8 pair of frame supports, at an angle of 15°, Art. no. 12.047.000
Door type
Roller shutter
Partitioning schemes
E
Housing load capacity kg
1200
Colour
Grey aluminium RAL 9007
