Side frame

73.022.180
Side frame (WxDxH) 80x1260x2200mm excl. floor anchors Grey-white RAL 9002
remove add add_shopping_cart
Other color variants
001
010
020
030
040
050
060
070
080
090
100
110
120
130
140
170
190
200
210
220
230
240
260
280
Accessories
Show matching accessories

Description

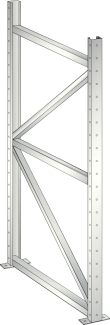

Side frames: Side frames are perforated at intervals of 100 mm to allow installation of top shelves, fixed and pull-out frames. Front and back columns are welded together with horizontal and diagonal braces to form a rigid frame. Specification: sheet steel pressed profiles. Colour: according to colour chart.

Notes

report

Heavy-duty pull-out shelving systems must always be anchored. Four floor anchors 73.205.000 are required per side frame.

A side frame connection is required to set up the shelves.

Technical Data

Description
Side frame
Net weight kg
31
Width mm
80
Depth mm
1260
Height mm
2200
Colour
Grey-white RAL 9002
Matching accessories for Side frame
Column guard 43.537.000

Column guard

43.537.000
Column guard PC6
remove add add_shopping_cart
Levelling plate 73.005.000

Levelling plate

73.005.000
Levelling plate 1mm
remove add add_shopping_cart
Levelling plate 73.006.000

Levelling plate

73.006.000
Levelling plate 2mm
remove add add_shopping_cart
Levelling plate 73.007.000

Levelling plate

73.007.000
Levelling plate 4mm
remove add add_shopping_cart
Floor anchoring 73.205.000

Floor anchoring
report

73.205.000
Floor anchoring M12x140
remove add add_shopping_cart
