Support pillar
Other color variants
-
colour as described (individual colour request)
001 -
Light blue RAL 5012
010 -
Light grey RAL 7035
020 -
Reseda green RAL 6011
030 -
Capri blue RAL 5019
040 -
Grey metallic NCS S 6502-B
050 -
Black NCS S 9000-N
060 -
Ruby red RAL 3003
070 -
Pigeon grey NCS S 4502-B
080 -
Gentian blue RAL 5010
090 -
Signal blue RAL 5005
100 -
Grey aluminium RAL 9007
120 -
White aluminium RAL 9006
130 -
Pale grey NCS S 2000-N
140 -
Ultramarine blue RAL 5002
170 -
Grey-white RAL 9002
180 -
Sky blue RAL 5015
190 -
Anthracite grey RAL 7016
200 -
Brilliant blue RAL 5007
210 -
Turquoise blue RAL 5018
220 -
Pebble grey RAL 7032
230 -
Flame red RAL 3000
240 -
Slate grey RAL 7015
260 -
Orange RAL 2004
280
Description

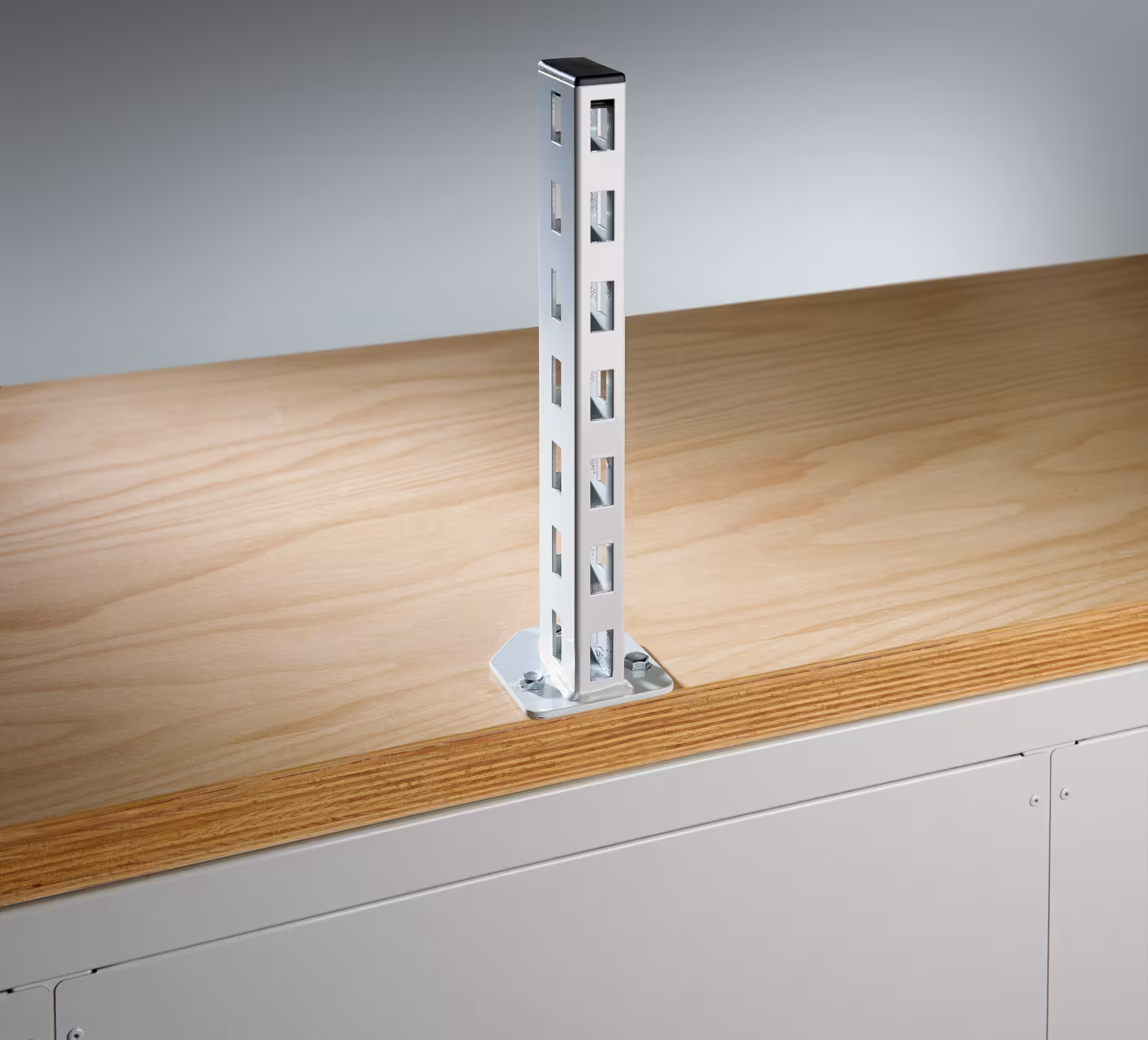

Support pillars for mounting onto workbench tops: The support pillars are available in four different heights and must be screwed directly onto the top surface (by the customer) using the fastening material provided. Capacity 100 kg (The load capacity on Universal, Eterlux and Resin tops is 50 kg). Fastening material included. Specification: steel profile, perforated on four sides in increments of 50 mm for attaching the superstructure components with minimum use of screws. Colour: according to colour chart. Minimum top thickness 40 mm. Only suitable for mounting on workbench tops made from beechwood, multiplex, universal, Eterlux, resin and ABS.
Notes
* When loaded to capacity, a support bracket is mandatory.
One of the three counterholders or countertops is required to mount a support pillar on a 28 / 30 mm countertop with an electrically height-adjustable table (LISTA Quattro, Duo, Solo). See planning information: Support pillar capacity.
