Top-mounted cabinet
62.637.140
Top-mounted cabinet with solid sheet hinged doors 36x27E (WxDxH) 717x572x1000mm KEY Lock Pale grey NCS S 2000-N
Other color variants
-
colour as described (individual colour request)
001 -

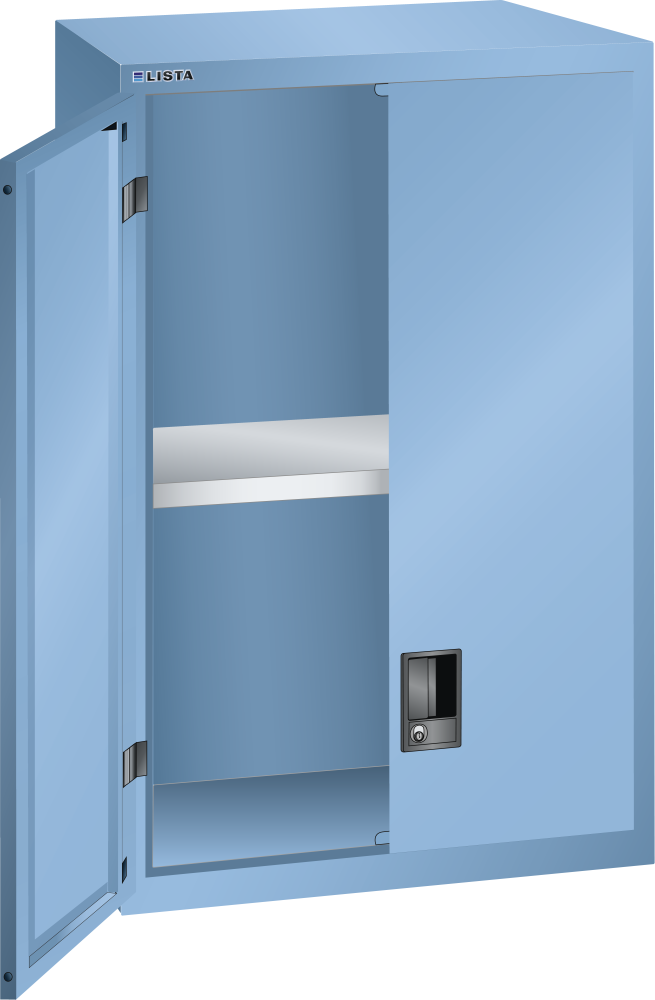

Light blue RAL 5012
010 -
Light grey RAL 7035
020 -
Reseda green RAL 6011
030 -

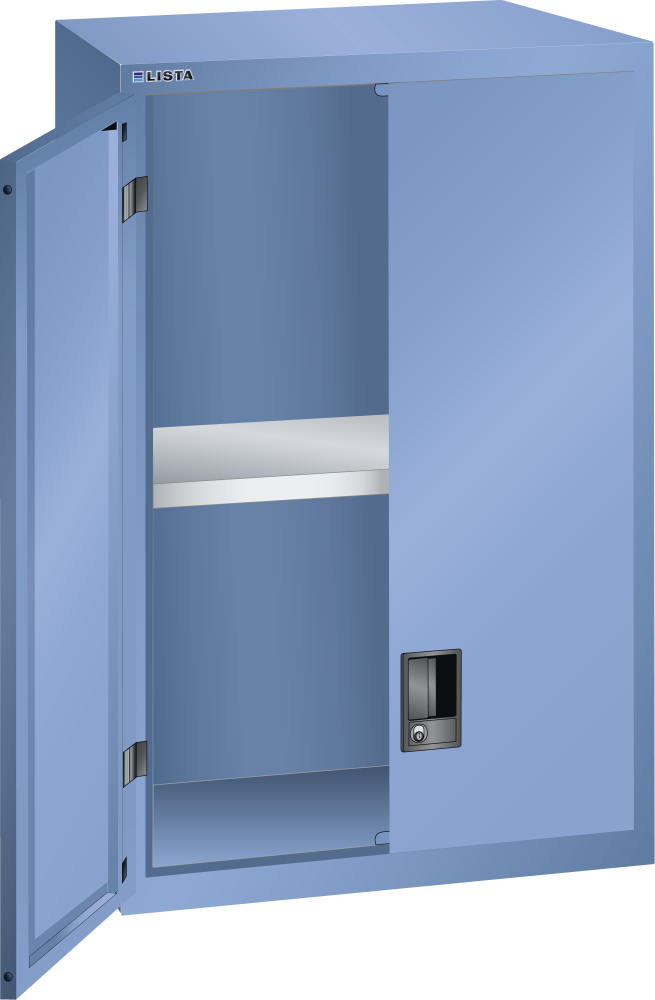

Capri blue RAL 5019
040 -
Grey metallic NCS S 6502-B
050 -

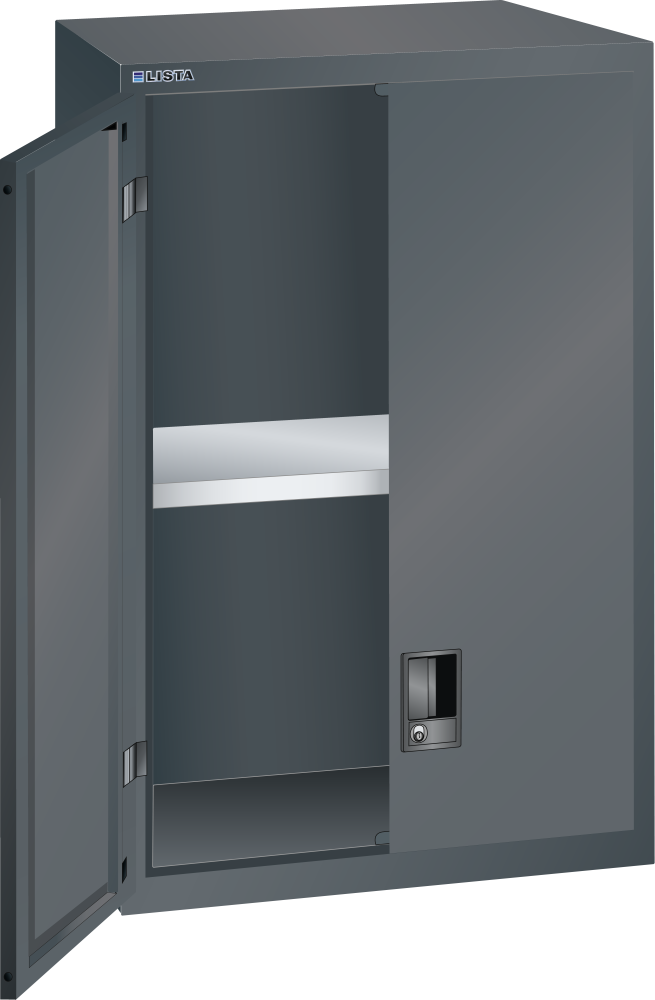

Black NCS S 9000-N
060 -
Ruby red RAL 3003
070 -
Pigeon grey NCS S 4502-B
080 -

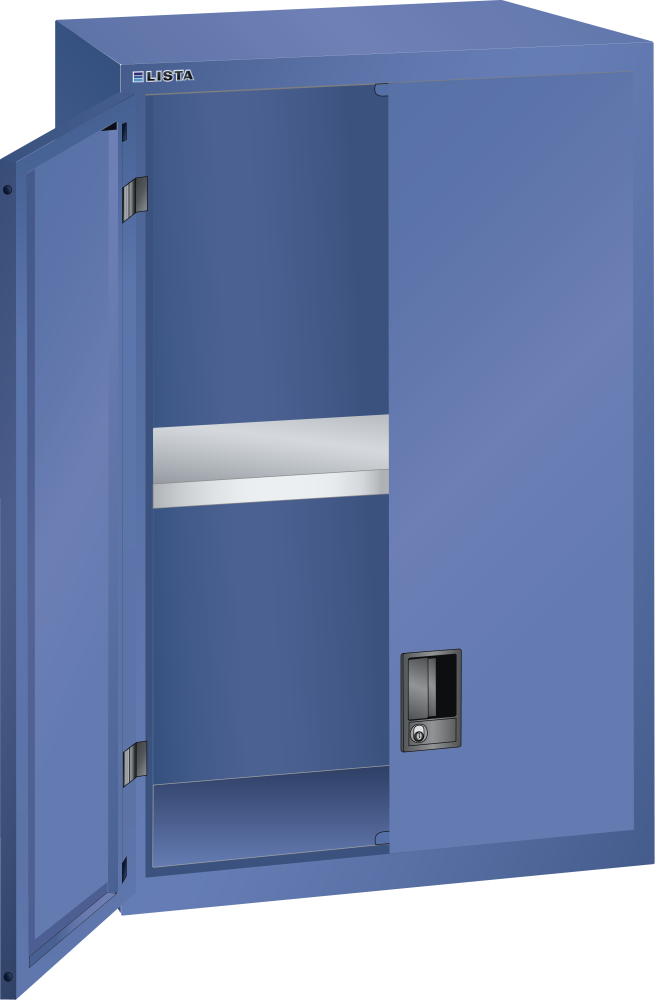

Gentian blue RAL 5010
090 -

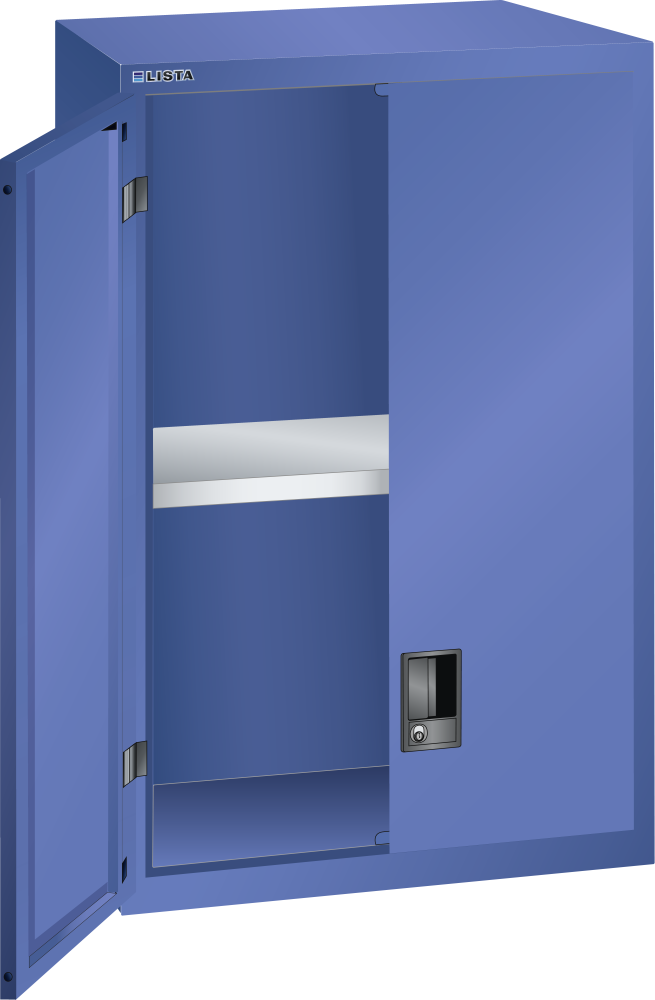

Signal blue RAL 5005
100 -
Pure white RAL 9010
110 -
Grey aluminium RAL 9007
120 -
White aluminium RAL 9006
130 -
Ultramarine blue RAL 5002
170 -

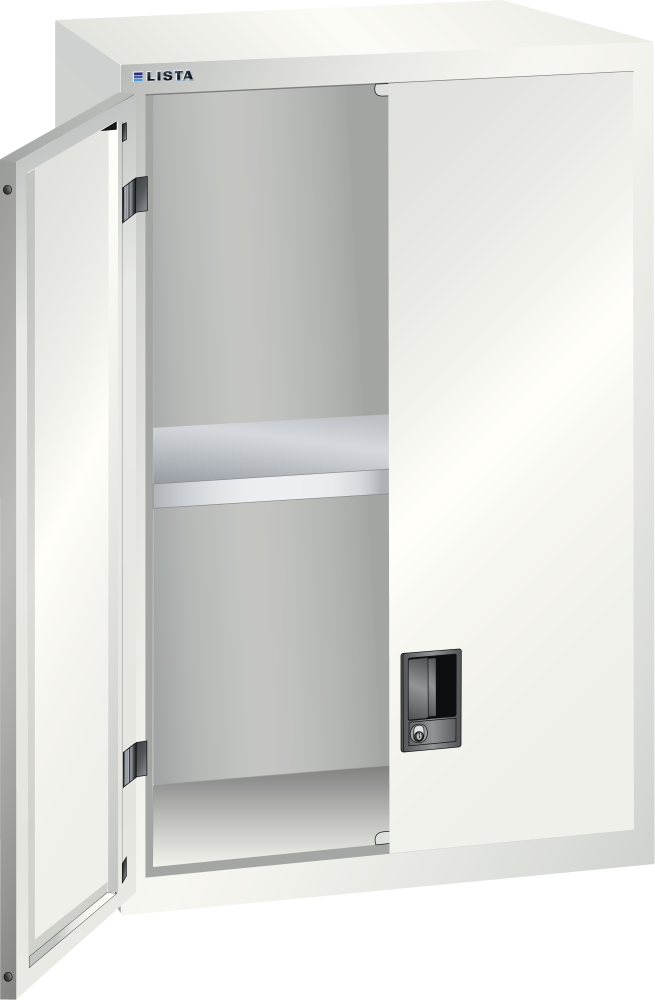

Grey-white RAL 9002
180 -
Sky blue RAL 5015
190 -
Anthracite grey RAL 7016
200 -
Brilliant blue RAL 5007
210 -

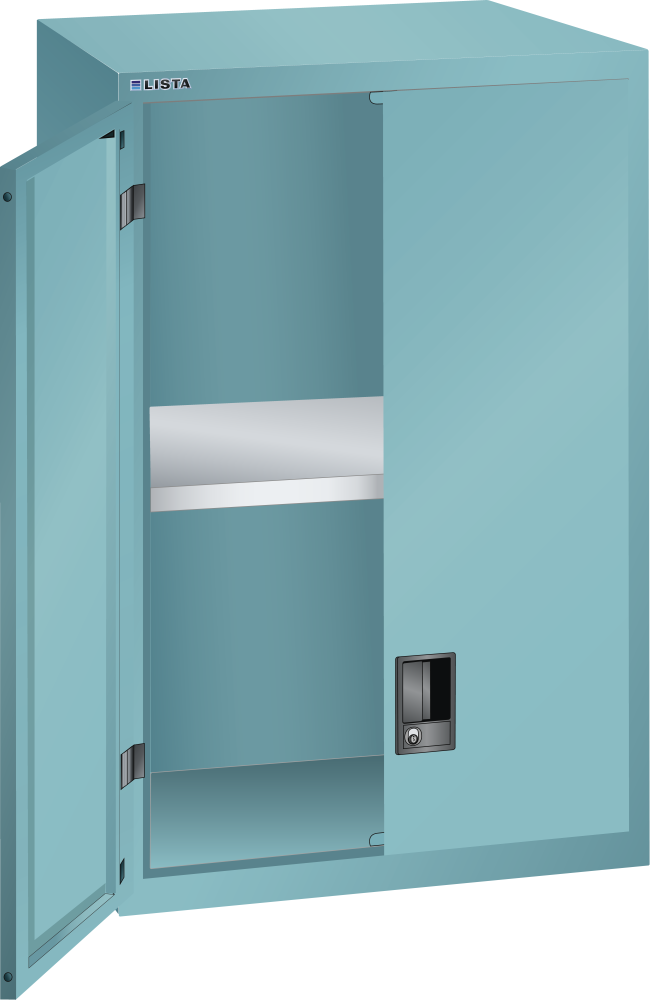

Turquoise blue RAL 5018
220 -
Pebble grey RAL 7032
230 -
Flame red RAL 3000
240 -
Slate grey RAL 7015
260 -
Orange RAL 2004
280 -

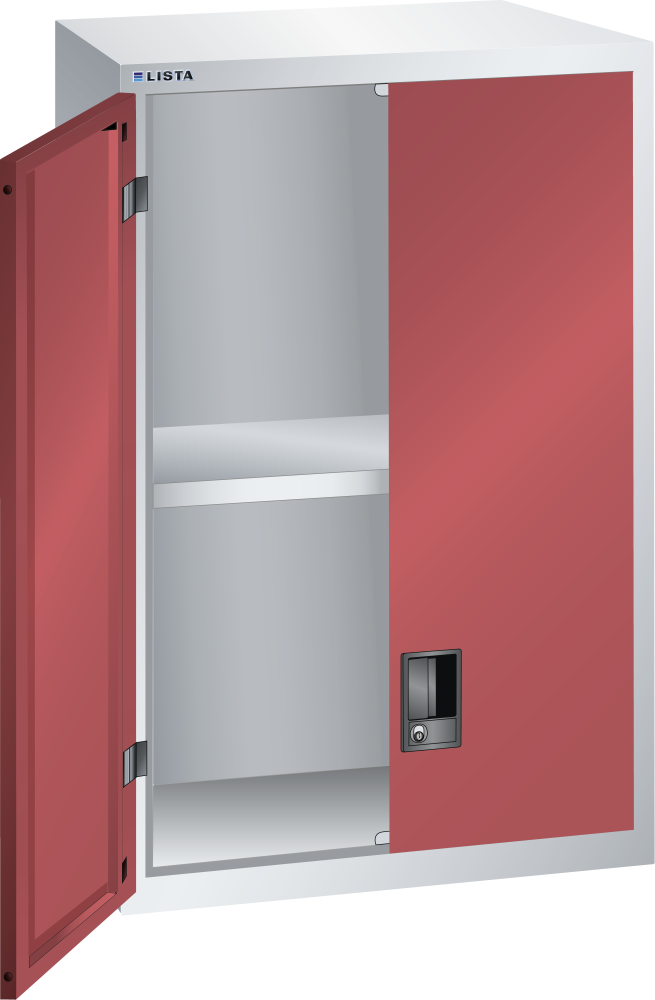

Light grey RAL 7035 / Ruby red RAL 3003
512 -
Light grey RAL 7035 / Light blue RAL 5012
514 -

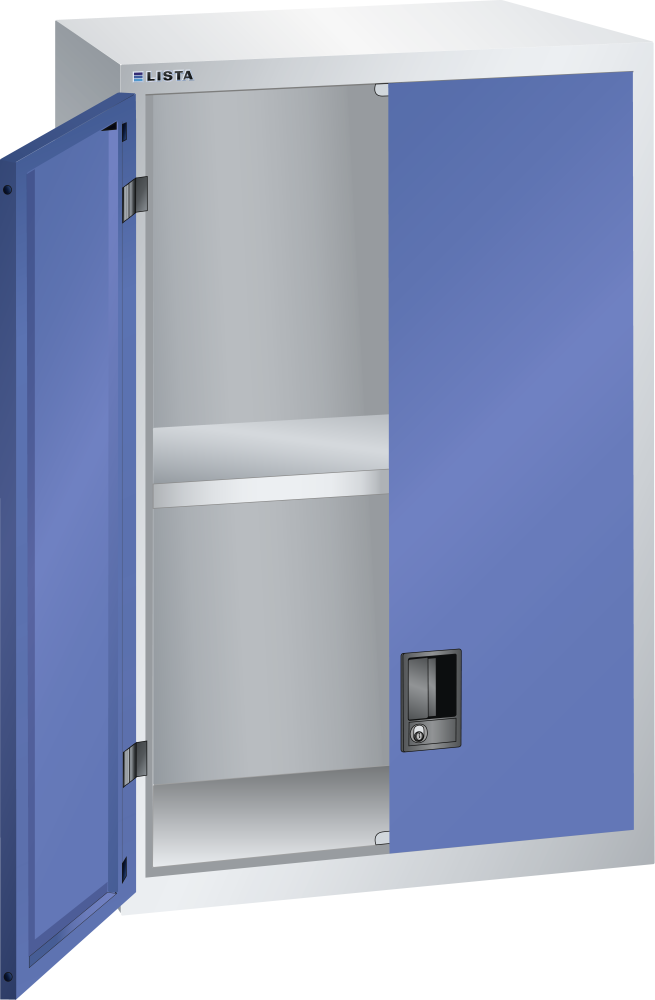

Light grey RAL 7035 / Signal blue RAL 5005
518 -

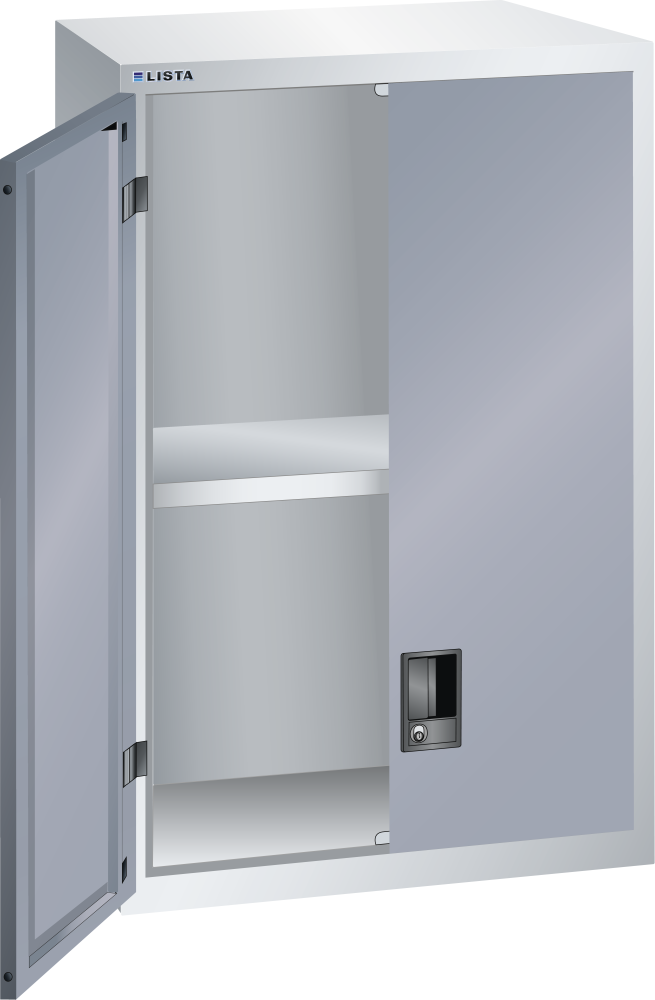

Light grey RAL 7035 / Grey metallic NCS S 6502-B
519 -

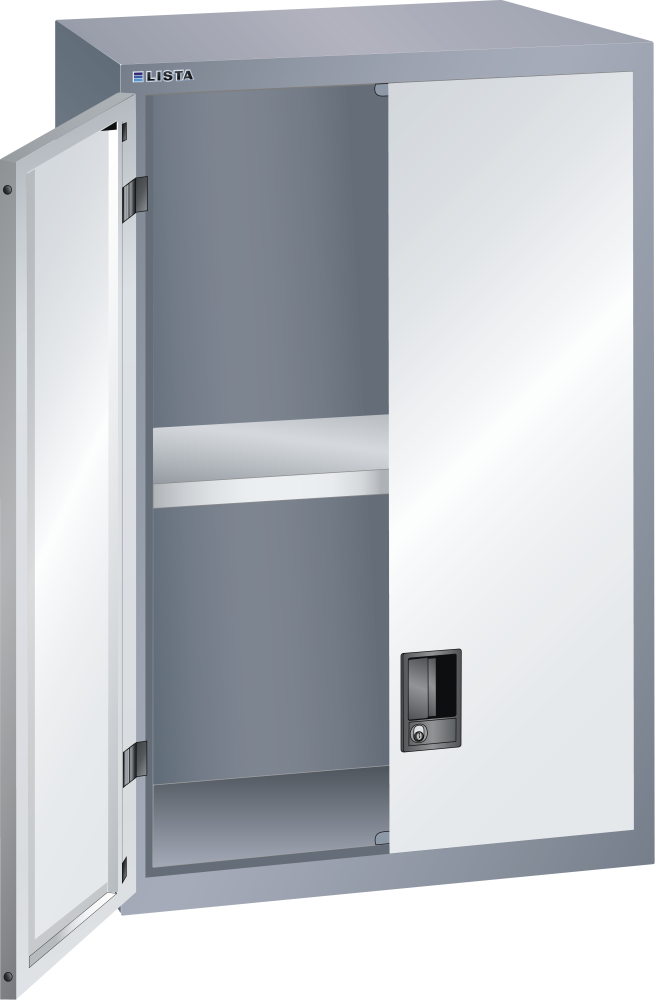

Grey metallic NCS S 6502-B / Light grey RAL 7035
521 -

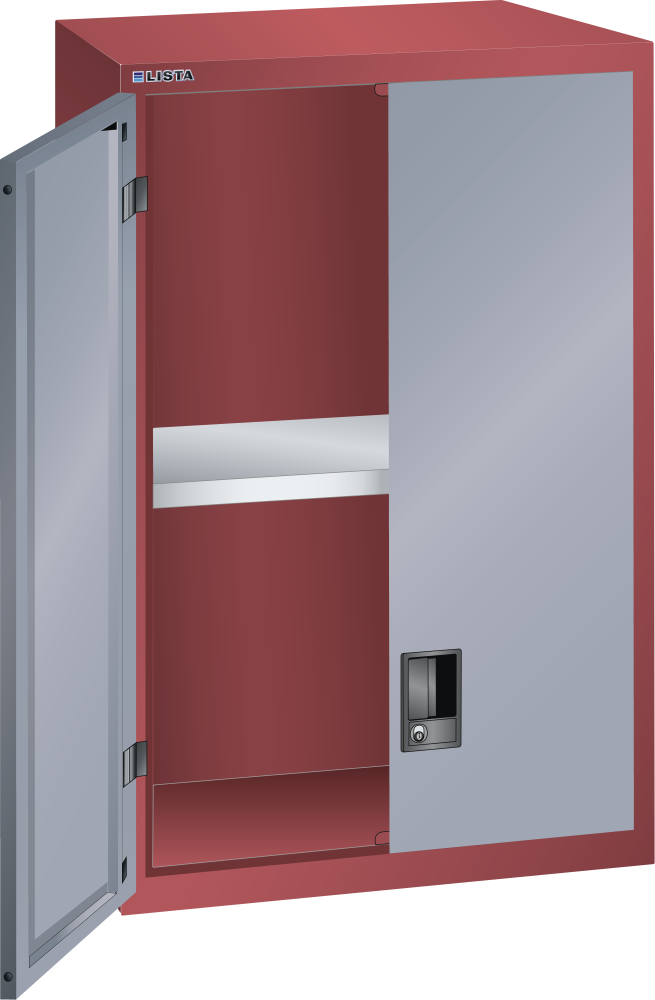

Ruby red RAL 3003 / Grey metallic NCS S 6502-B
522
Description
KEY Lock: KEY Lock, our standard locking system with replaceable cylinders. Manual opening/locking with key.
Adjustable shelves, plain: Adjustable shelves including 4 shelf supports. Specification: sheet steel, galvanised. Long sides folded by 4 x 90°. 30 mm thick, capacity 60 kg. Adjustable in increments of 25 mm.
Notes
Incl. fastening set for fastening top-mounted cabinet to drawer cabinet.
Technical Data
Description
Top-mounted cabinet
Net weight kg
23
LISTA units
36 x 27 E
Width mm
717
Depth mm
572
Height mm
1000
Clear height mm
930
Number of adjustable shelves
1
Adjustable shelf load capacity kg
60
Locking system
KEY Lock
Door type
Hinged doors
Door material
Solid sheet
Hinge pins mounted
Pintle bearing
Colour
Pale grey NCS S 2000-N
